0311-960414 Aero (OEM) Easy Cover 585/485 5-Spring Assembly, Driver Side

0311-960414 Aero (OEM) Easy Cover 585/485 5-Spring Assembly, Driver Side
Item #: 34876
Part #: 0311-960414
Price:
Add To Cart
0311-960414 Aero (OEM) Easy Cover 585/485 5-Spring Assembly, Driver Side
Additional Photos
0311-960414 Aero (OEM) Easy Cover 585/485 5-Spring Assembly, Driver Side
0311-960414 Aero (OEM) Easy Cover 585/485 5-Spring Assembly, Driver Side
Item #: 34876
Part #: 0311-960414
Price:
Qty:
Add To Cart

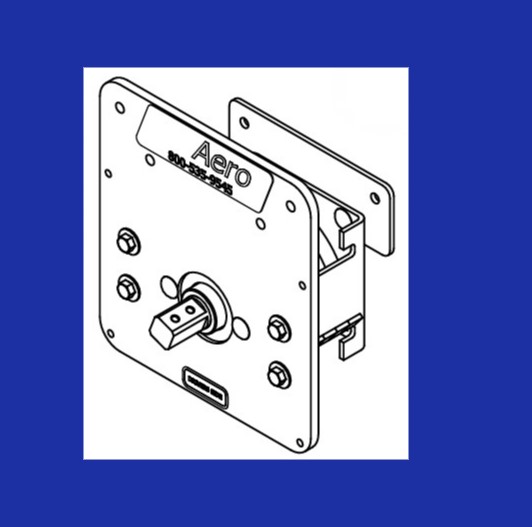

0311-960414 Aero (OEM) 5-Spring assembly for Easy Cover 585 or 485. Flange mounts under the bottom rail, providing constant tension. This is the Driver's Side spring assembly. Passenger side can be found here

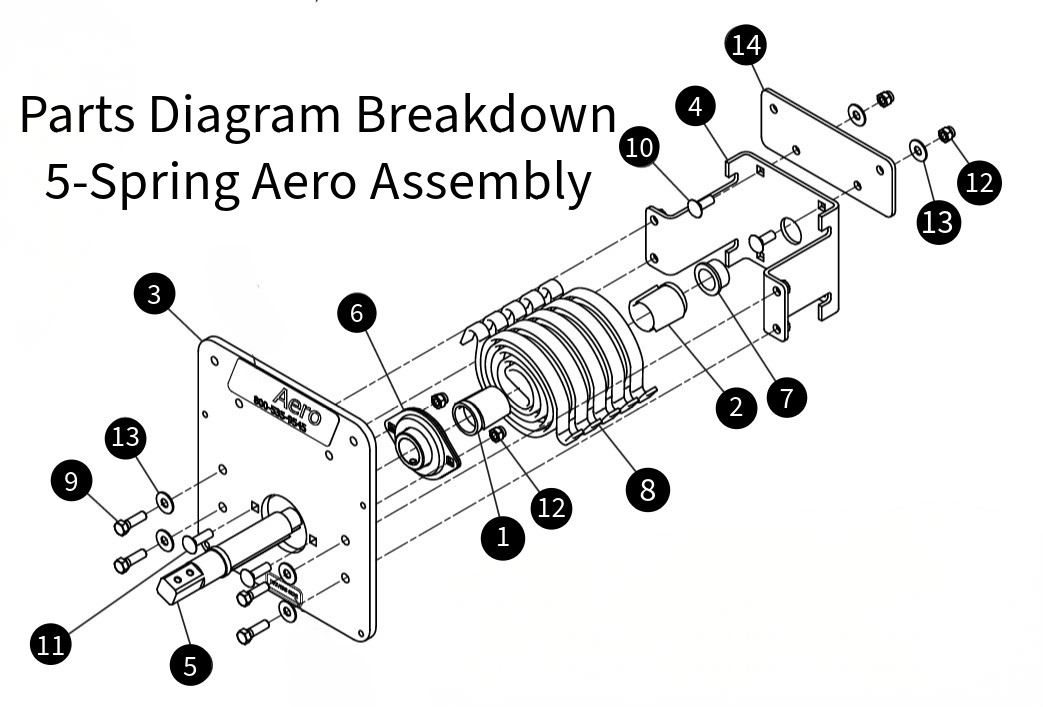

Parts Diagram Breakdown

  • 1 - 0311-861285-O Aero (OEM) Easy Cover 5-Spring Plastic Insert "A" Black
  • 2 - 0311-861286-O Aero (OEM) Easy Cover 5-Spring Plastic Insert "B" White
  • 3 - 0311-862665 Aero (OEM) Front Housing Mount
  • 4 - 0311-962265 Aero (OEM) Spring Housing Weldment
  • 5 - 0311-862667 Aero (OEM) Spring Shaft
  • 6 - 0710-602115 Aero (OEM) Easy Cover Bearing
  • 7 - 0710-602903 Aero (OEM) Bushing Bronze Flange
  • 8 - 0715-619550 Aero (OEM) Spiral E-Coated Double Torsion Springs
  • 9 - 0810-670700 Aero (OEM) Bolt HHCS 3/8"-16 x 1"
  • 10 - 0810-650655 Aero (OEM) Bolt Carr 3/8-16 x 1
  • 11 - 0810-650565 Aero (OEM) Easy Cover Bolt Carr 3/8-16X1-1/4
  • 12 - 0815-660660 Aero (OEM) Easy Cover Nut Hex. 3/8-16 Zinc Nylon Insert
  • 13 - 0820-680620 Aero (OEM) Easy Cover Washer Flat 3/8"
  • 14 - 0311-860254 Aero (OEM) Plate, Rear Mounting 5 Spring

    • Please feel free to Contact Us with any Questions. Thank You!
