0310-964132 Aero (OEM) Easy Cover Arm Kit for 14' - 21' Trailers (Bent Arms)

0310-964132 Aero (OEM) Easy Cover Arm Kit for 14' - 21' Trailers (Bent Arms)
Item #: 34870
Part #: 0310-964132
Price:
Add To Cart
0310-964132 Aero (OEM) Easy Cover Arm Kit for 14 - 21 Trailers (Bent Arms)
Additional Photos
0310-964132 Aero (OEM) Easy Cover Arm Kit for 14 - 21 Trailers (Bent Arms)
0310-964132 Aero (OEM) Easy Cover Arm Kit for 14' - 21' Trailers (Bent Arms)
Item #: 34870
Part #: 0310-964132
Price:
Qty:
Add To Cart

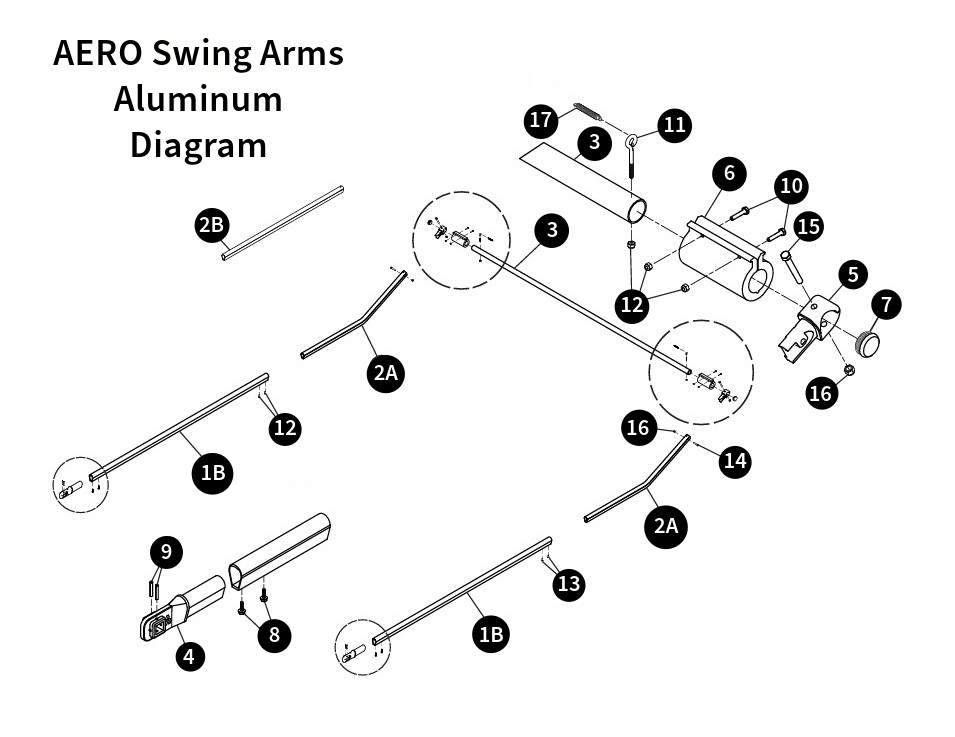

Parts Diagram Breakdown

  • 1B - 0311-861803 Aero (OEM) Easy Cover Aluminum Swing Arm Lower 88 5/8"
  • 2A - 0311-861824 Aero (OEM) Bent Upper Arm for Easy Cover 54"
  • 3 - 0311-860706 Aero (OEM) Easy Cover Round Cross Arm 107.5"
  • 4 - 0311-864103 Aero (OEM) Easy Cover End Fitting U/M Alm Zinc Swing Arm
  • 5 - 0311-861151 Aero (OEM) Easy Cover Arm End for Use with Round Cross Arm
  • 6 - 0311-862277 Aero (OEM) Easy Cover HD Rubber Bumper for 1.75" Round Cross Bar
  • 7- 0311-862135 Aero (OEM) Easy Cover Plug End For 1 3/4" Tube Black Plastic
  • 8 - 0810-650510 Aero (OEM) Easy Cover Bolt HWH. 5/16"X1" Type F Zinc Self Tapping (Individual Part)
  • 9 - 0835-691616 Aero (OEM) Easy Cover Pin Spring 1/4X1-5/8 Zinc
  • 10 - 0810-650503 Aero (OEM) Bolt 1/4" - 20 X 1-1/4"
  • 11 - 0810-650911 Aero (OEM) Easy Cover Bolt Eye. 1/4-20X2-1/2 Shank
  • 12 - 0815-660451 Aero (OEM) Easy Cover Nut Hex. 1/4-20-Nylock Zinc Nylon Insert
  • 13 - 0810-670682 Aero (OEM) Easy Cover Bolt Hhcs 3/8-16X3/4 Gr5
  • 14 - 0810-670705 Aero (OEM) BOLT HHCS 3/8-20x2 (No Link Available)
  • 15 - 0810-650112 Aero (OEM) BOLT HHCS 3/8-20x3 (No Link Available)
  • 16 - 0815-660660 Aero (OEM) Easy Cover Nut Hex. 3/8-16 Zinc Nylon Insert
  • 17 - 0715-619601 Aero (OEM) Easy Cover Spring Tension 4" Zinc

    • Kit does not include springs or pivot castings/end fittings. Easy Cover Spring Assembly can be found Here


    Please feel free to Contact Us with any Questions. Thank You!
