0310-964145 Aero (OEM) Easy Cover Arm Kit for 29' - 32' Trailers (Straight Arms)

0310-964145 Aero (OEM) Easy Cover Arm Kit for 29' - 32' Trailers (Straight Arms)
Expected to ship within 2 to 3 business days.
Item #: 34866
Part #: 0310-964145
Price:
Add To Cart
0310-964145 Aero (OEM) Easy Cover Arm Kit for 29 - 32 Trailers (Straight Arms)
0310-964145 Aero (OEM) Easy Cover Arm Kit for 29' - 32' Trailers (Straight Arms)
Item #: 34866
Part #: 0310-964145
Price:
Qty:
Add To Cart
Expected to ship within 2 to 3 business days.

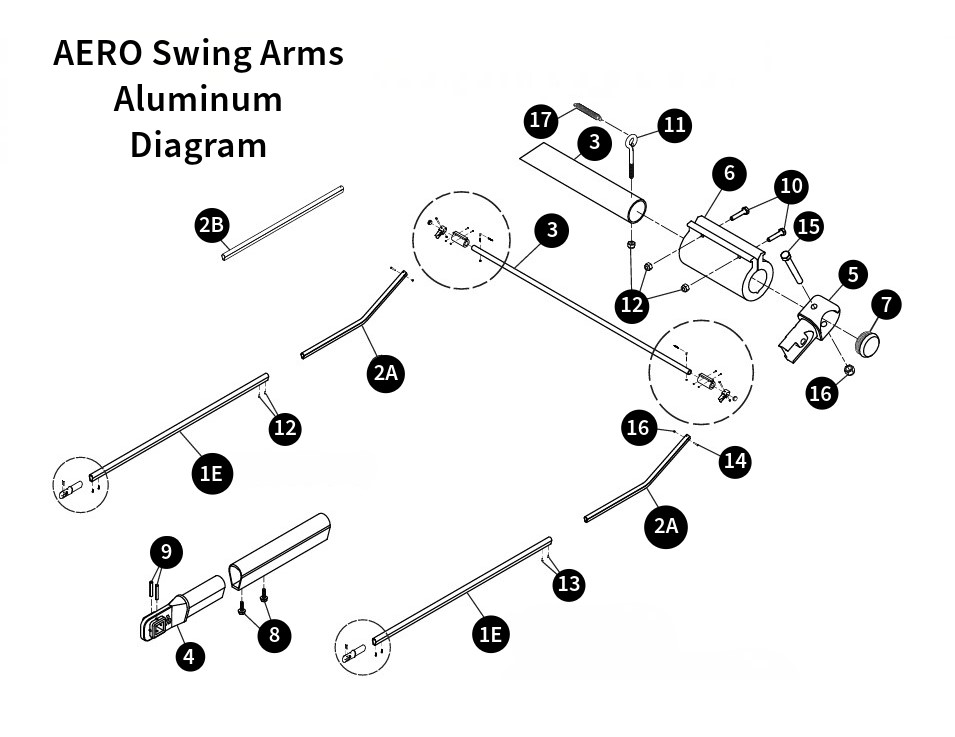

Parts Diagram Breakdown

  • 1E - 0311-861806 Aero (OEM) Easy Cover Swing Arm Lower 187"
  • 2B - 0311-861812 Aero (OEM) 54-1/8" Straight Upper Swing Arm for Easy Cover Tarp Systems
  • 3 - 0311-860706 Aero (OEM) Easy Cover Round Cross Arm 107.5"
  • 4 - 0311-864103 Aero (OEM) Easy Cover End Fitting U/M Alm Zinc Swing Arm
  • 5 - 0311-861151 Aero (OEM) Easy Cover Arm End for Use with Round Cross Arm
  • 6 - 0311-862277 Aero (OEM) Easy Cover HD Rubber Bumper for 1.75" Round Cross Bar
  • 7- 0311-862135 Aero (OEM) Easy Cover Plug End For 1 3/4" Tube Black Plastic
  • 8 - 0810-650510 Aero (OEM) Easy Cover Bolt HWH. 5/16"X1" Type F Zinc Self Tapping (Individual Part)
  • 9 - 0835-691616 Aero (OEM) Easy Cover Pin Spring 1/4X1-5/8 Zinc
  • 10 - 0810-650503 Aero (OEM) Bolt 1/4" - 20 X 1-1/4"
  • 11 - 0810-650911 Aero (OEM) Easy Cover Bolt Eye. 1/4-20X2-1/2 Shank
  • 12 - 0815-660451 Aero (OEM) Easy Cover Nut Hex. 1/4-20-Nylock Zinc Nylon Insert
  • 13 - 0810-670682 Aero (OEM) Easy Cover Bolt Hhcs 3/8-16X3/4 Gr5
  • 14 - 0810-670705 Aero (OEM) BOLT HHCS 3/8-20x2 (No Link Available)
  • 15 - 0810-650112 Aero (OEM) BOLT HHCS 3/8-20x3 (No Link Available)
  • 16 - 0815-660660 Aero (OEM) Easy Cover Nut Hex. 3/8-16 Zinc Nylon Insert
  • 17 - 0715-619601 Aero (OEM) Easy Cover Spring Tension 4" Zinc

    • Kit does not include springs or pivot castings/end fittings. Easy Cover Spring Assembly can be found Here
