Aluminum Tarp Spool Mounting Bracket (1 bracket)

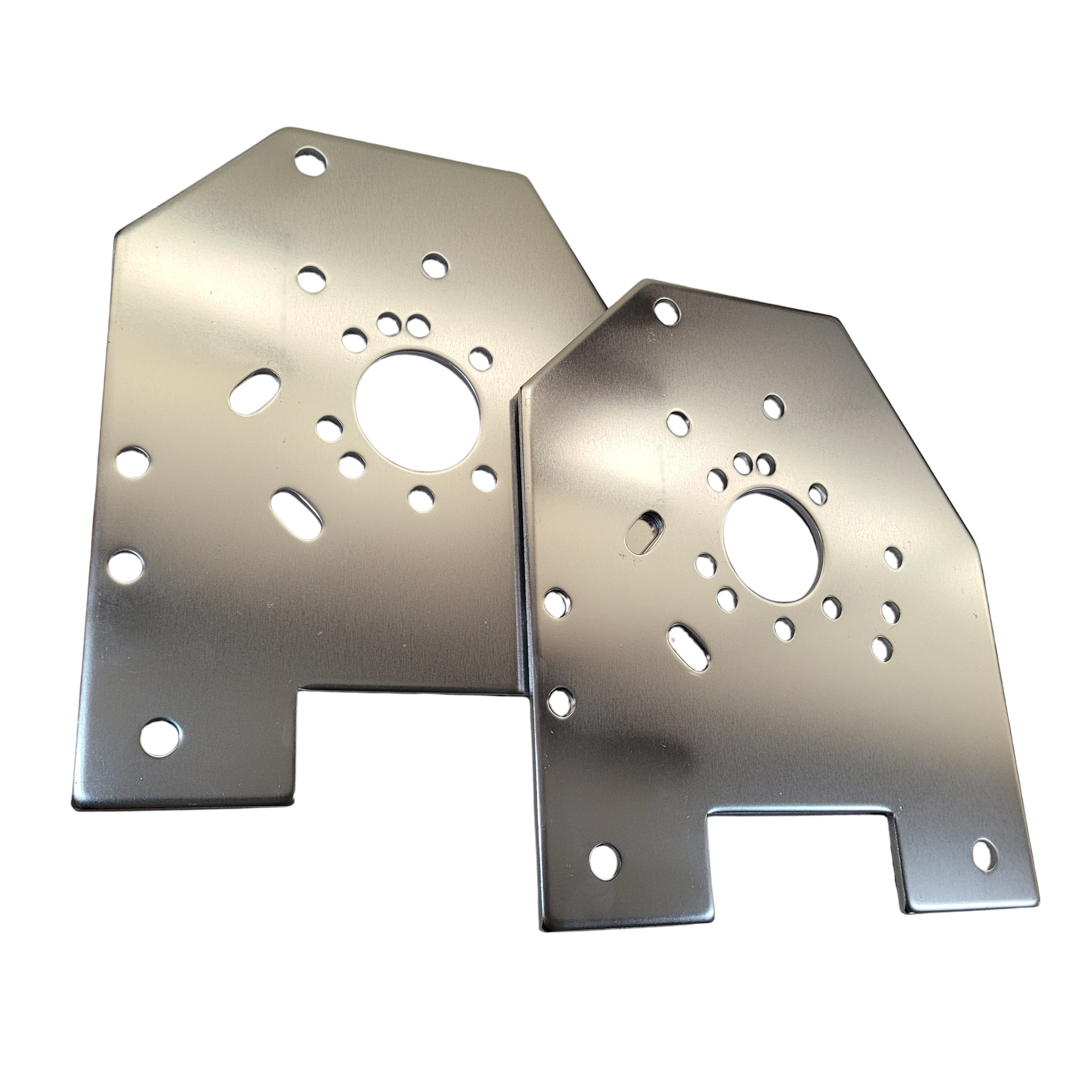

This item is for one bracket only. You will need two in order to mount a tarp axle.

Aluminum tarp spool mounting bracket for standard 4- and 5-spring electric aluminum tarping systems.

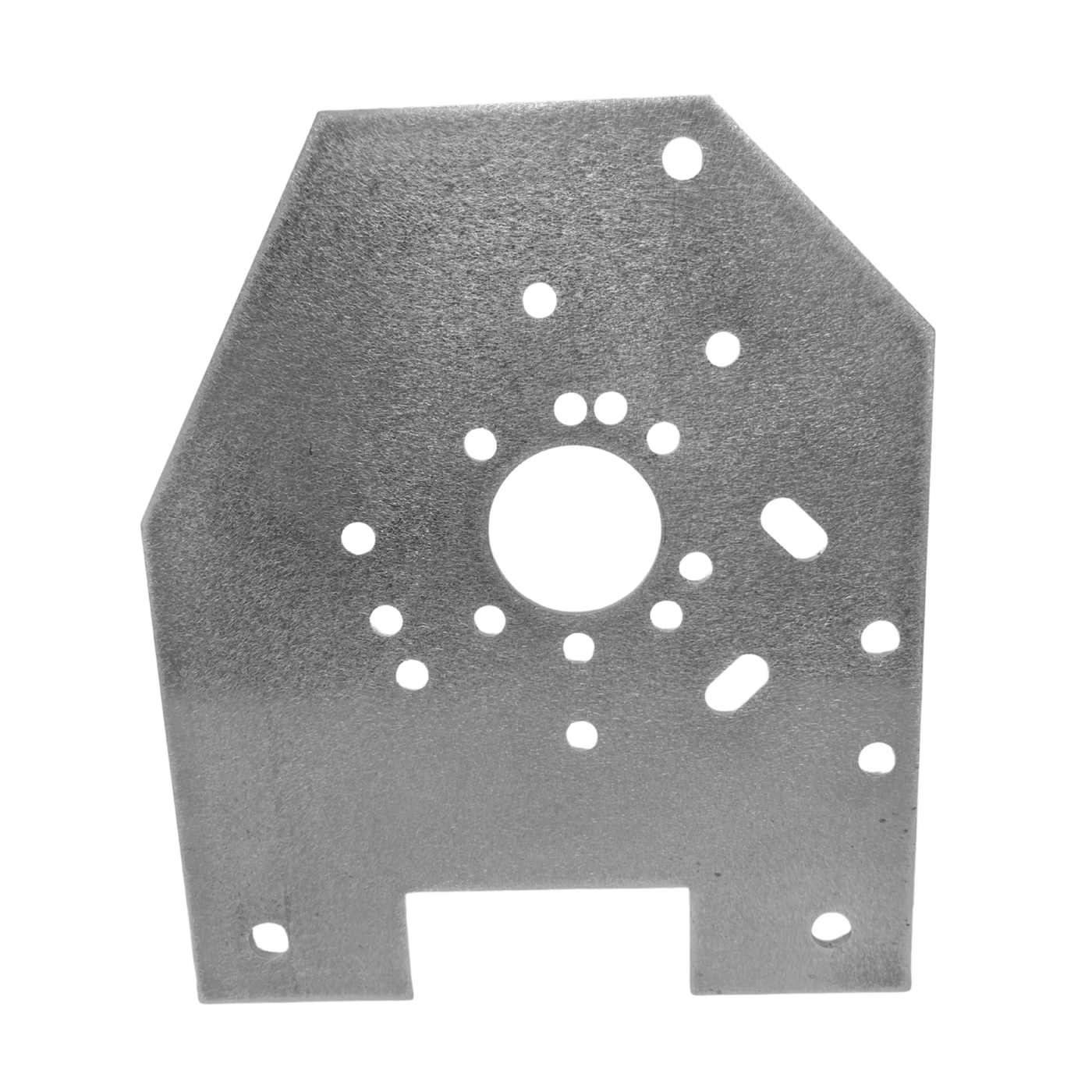

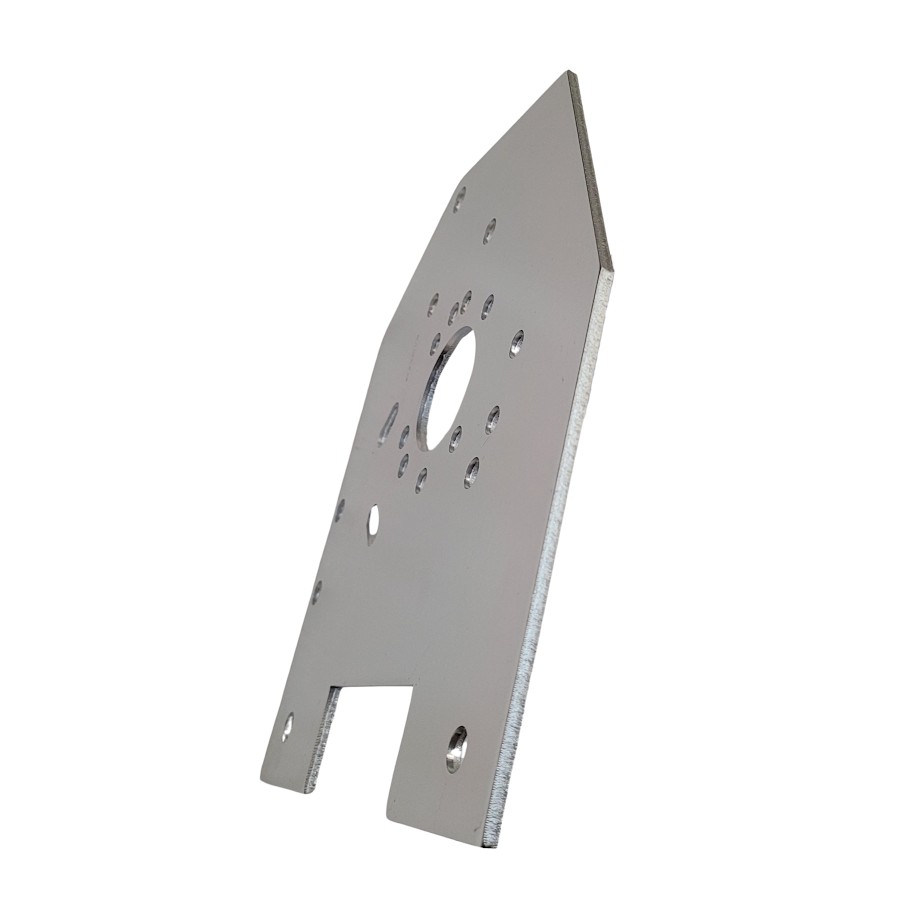

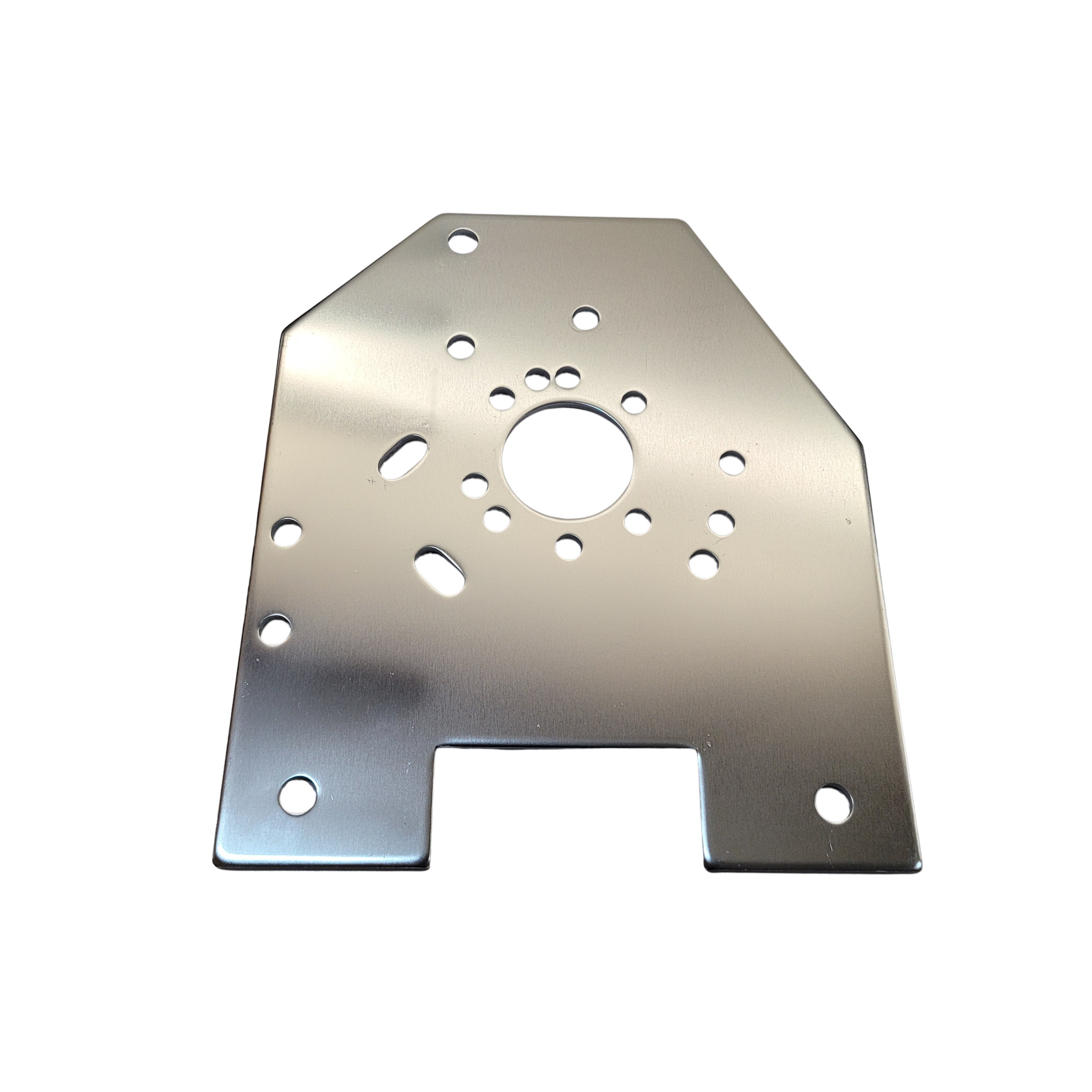

Measures 10 1/2" long and 9" wide, with a 2" center hole and a 1 9/16" x 3 1/2" rectangular cut-out at the bottom. 4 7/8" angle on one side, 3 1/4" angle on the other side. Space between mounting holes is 7" center to center. Bracket thickness is 3/16". Bolt pattern as shown in picture.

Black rubber bumper available here.

Please feel free to Contact Us with any Questions. Thank You!
