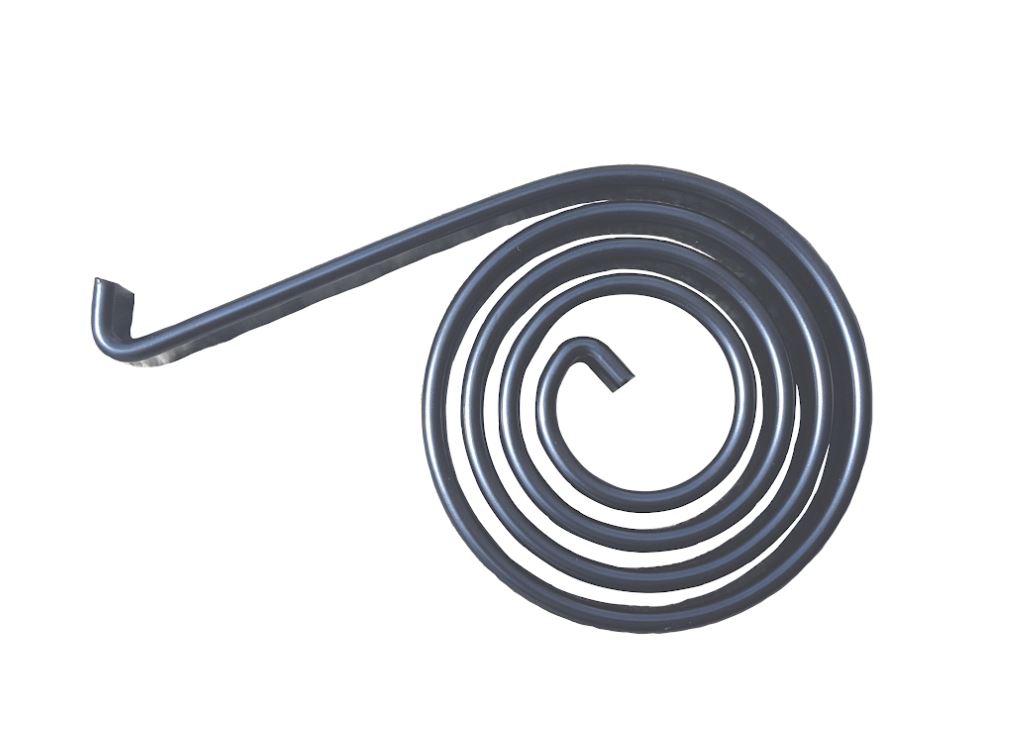

Tarp Arm Spring for Side-Mount Tarp Systems | Flat Coil Spiral Torsion Spring

Tarp Arm Spring for Side-Mount Tarp Systems | Flat Coil Spiral Torsion Spring
In Stock. Expected to ship tomorrow.
Item #: 9301
Price:
Add To Cart
Additional Photos
Tarp Arm Spring for Side-Mount Tarp Systems | Flat Coil Spiral Torsion Spring
Item #: 9301
Price:
Qty:
Add To Cart
In Stock. Expected to ship tomorrow.

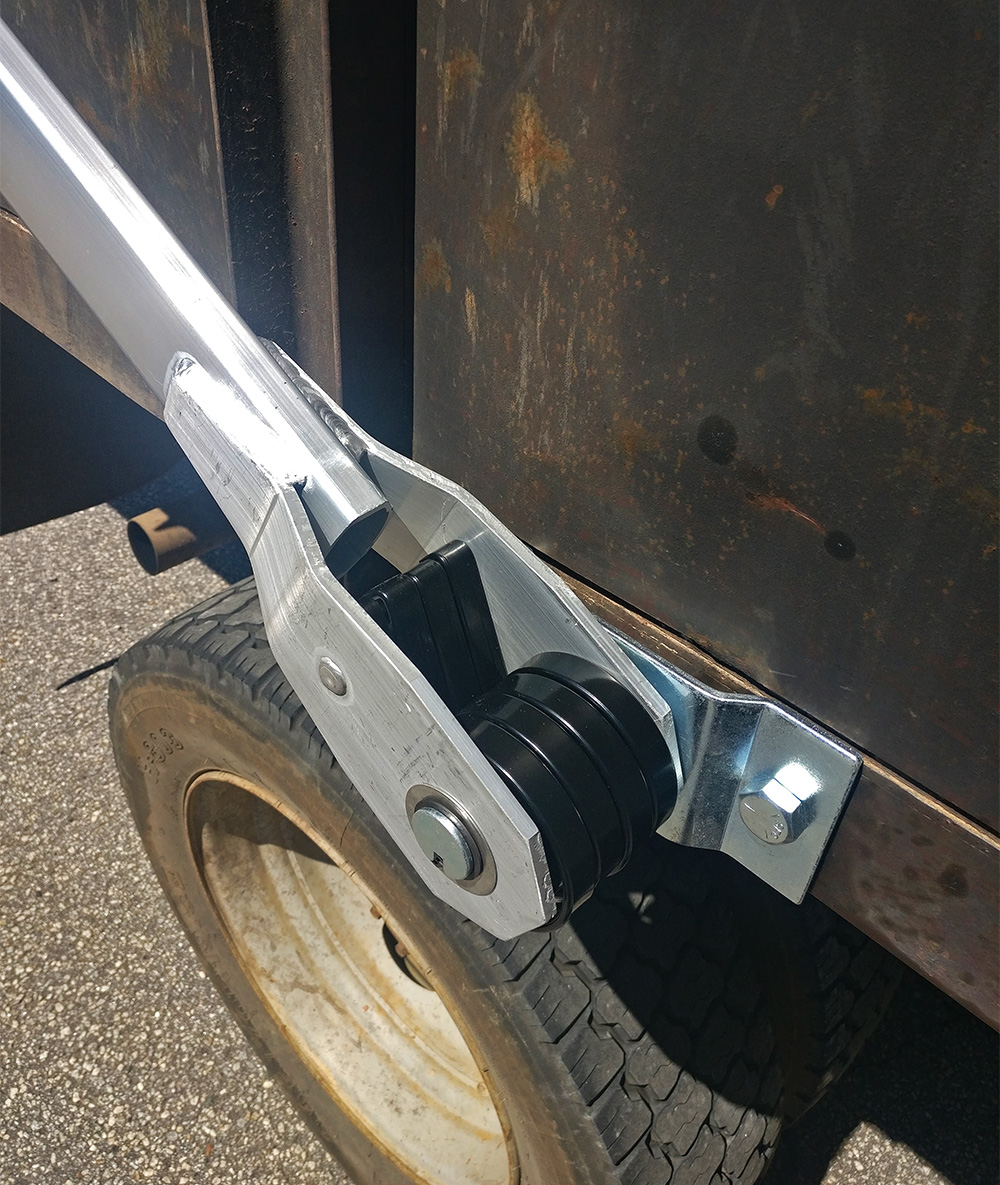

Tarp springs are housed in the base of the tarp arm and are activated when the tarp is rolled up. A bent tab in the center of the spiral spring latches onto the tarp system pivot pin, and the tail of the spring latches onto a rod or ledge in the tarp arm and as the tarp is rolled up, the tarp arms push against the tail of the spring, causing a build up of tension. If you are leaving your truck for an extended time, it is best to deploy the tarp so the tarp arms springs are in a relaxed state.

When you hear the term "4 spring" or "5 spring", it refers to the number of springs mounted on each side of a spring loaded tarp system. They are not to be confused with Underbody Springs, which utilize a single coil spring mounted underneath the dump body.

Our dump truck tarp springs are electronically coated, which protects them from premature rust, but eventually tarp springs will wear out. It is best to replace all springs at once to ensure even tension on both sides of your tarp system.

  • MADE IN THE USA

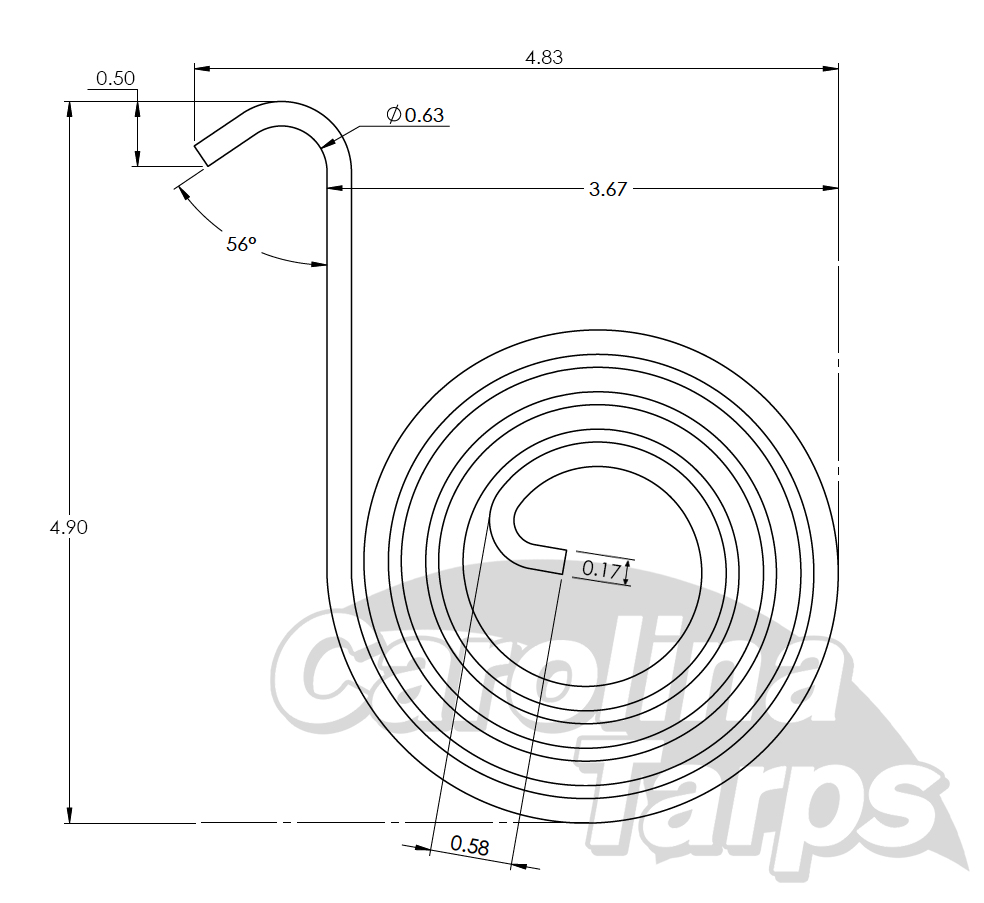

  • 0.17" x 0.625" 1065 Oil-Tempered E-Coated Steel Band
  • 3.67" Spiral
  • 4.90" Tail
  • Universal replacement on all externally mounted spring powered tarp systems: US Tarp 11121, Donovan 2416, Roll Rite 47230, Cramaro 224200, Mountain K0199, Buyers 3011876. Not compatible with Aero Easy-Cover Double Torsion Springs
