In-Roll Tube Bungee Tarp Return Kit | Agri-Cover 70066

In-Roll Tube Bungee Tarp Return Kit | Agri-Cover 70066
In Stock. Expected to ship today.
Item #: 36275
Part #: 70066
Price:
Add To Cart
Additional Photos
In-Roll Tube Bungee Tarp Return Kit | Agri-Cover 70066
Item #: 36275
Part #: 70066
Price:
Qty:
Add To Cart
In Stock. Expected to ship today.

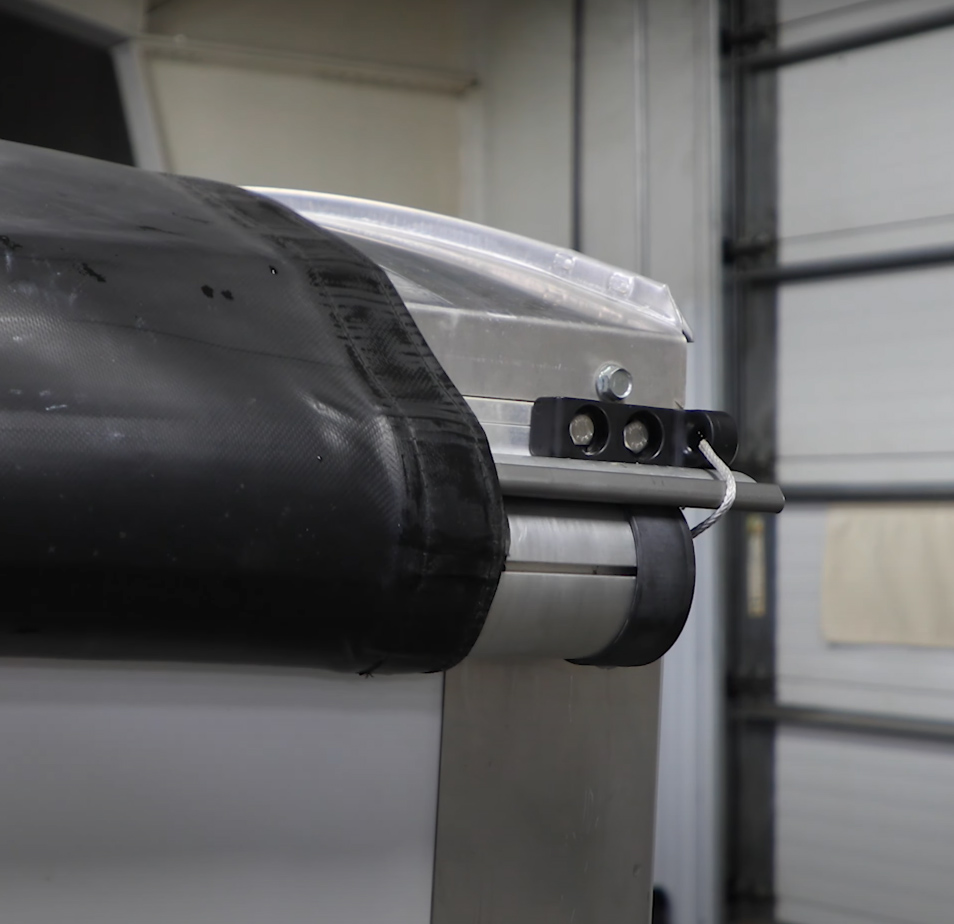

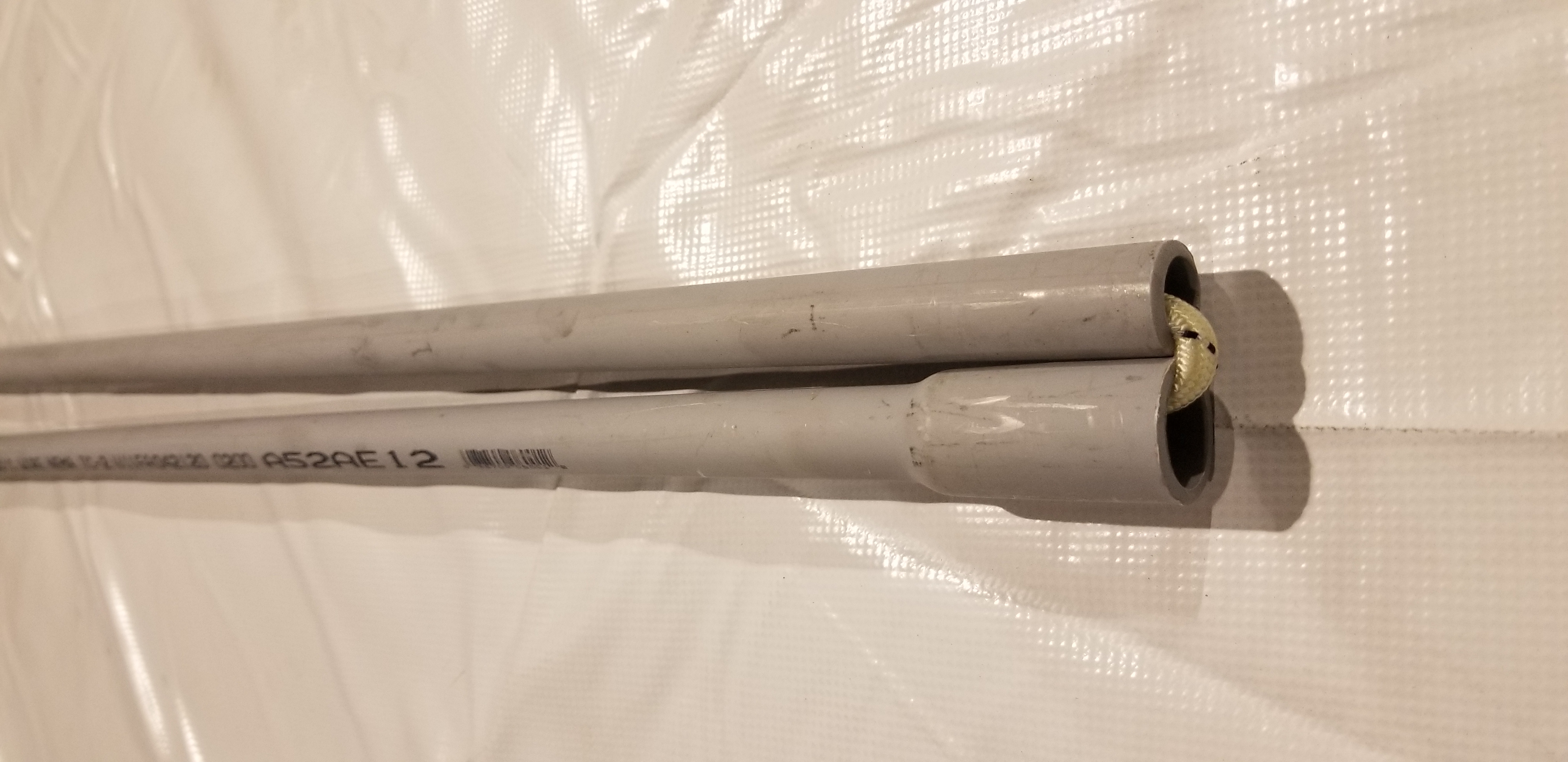

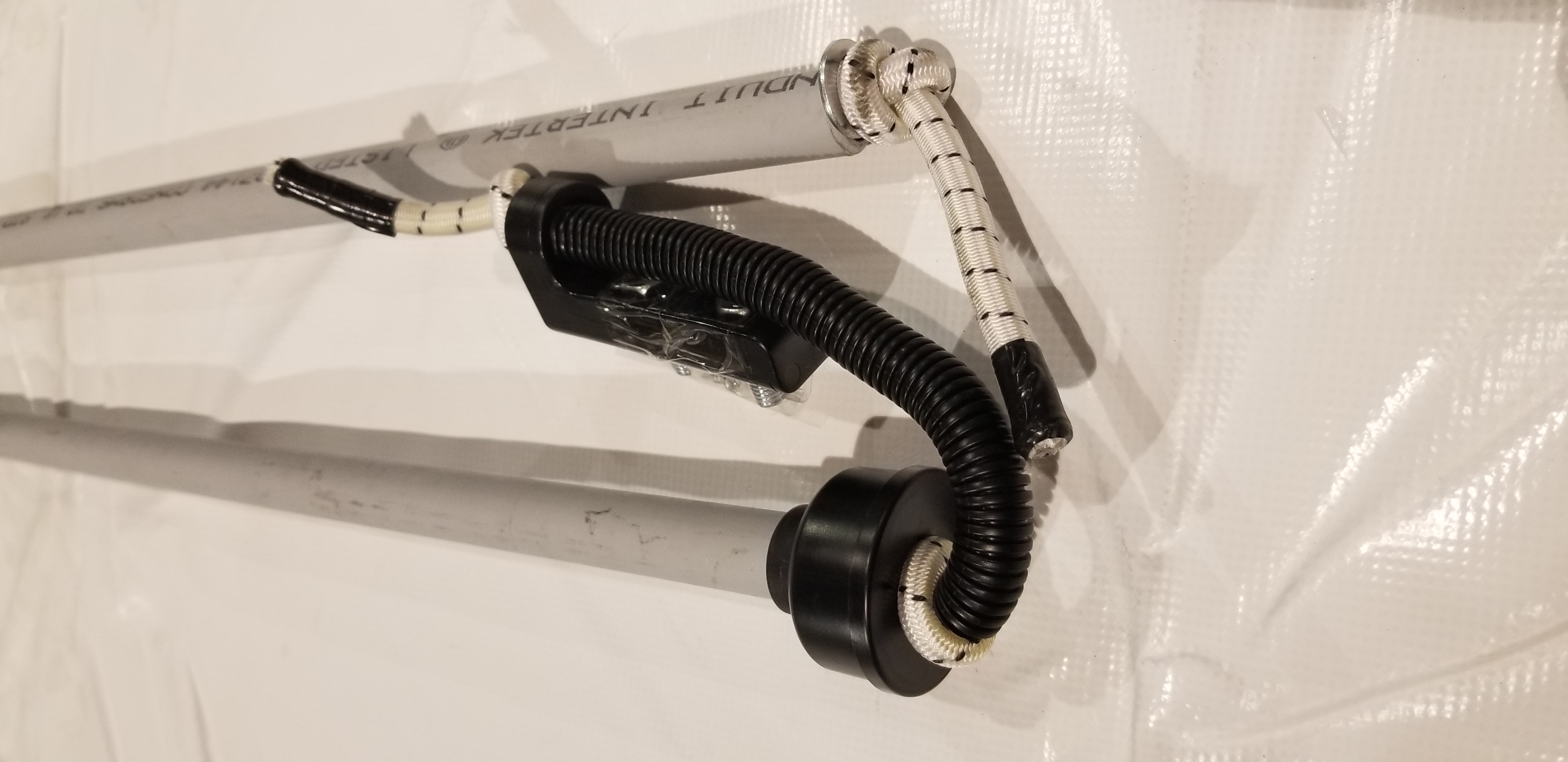

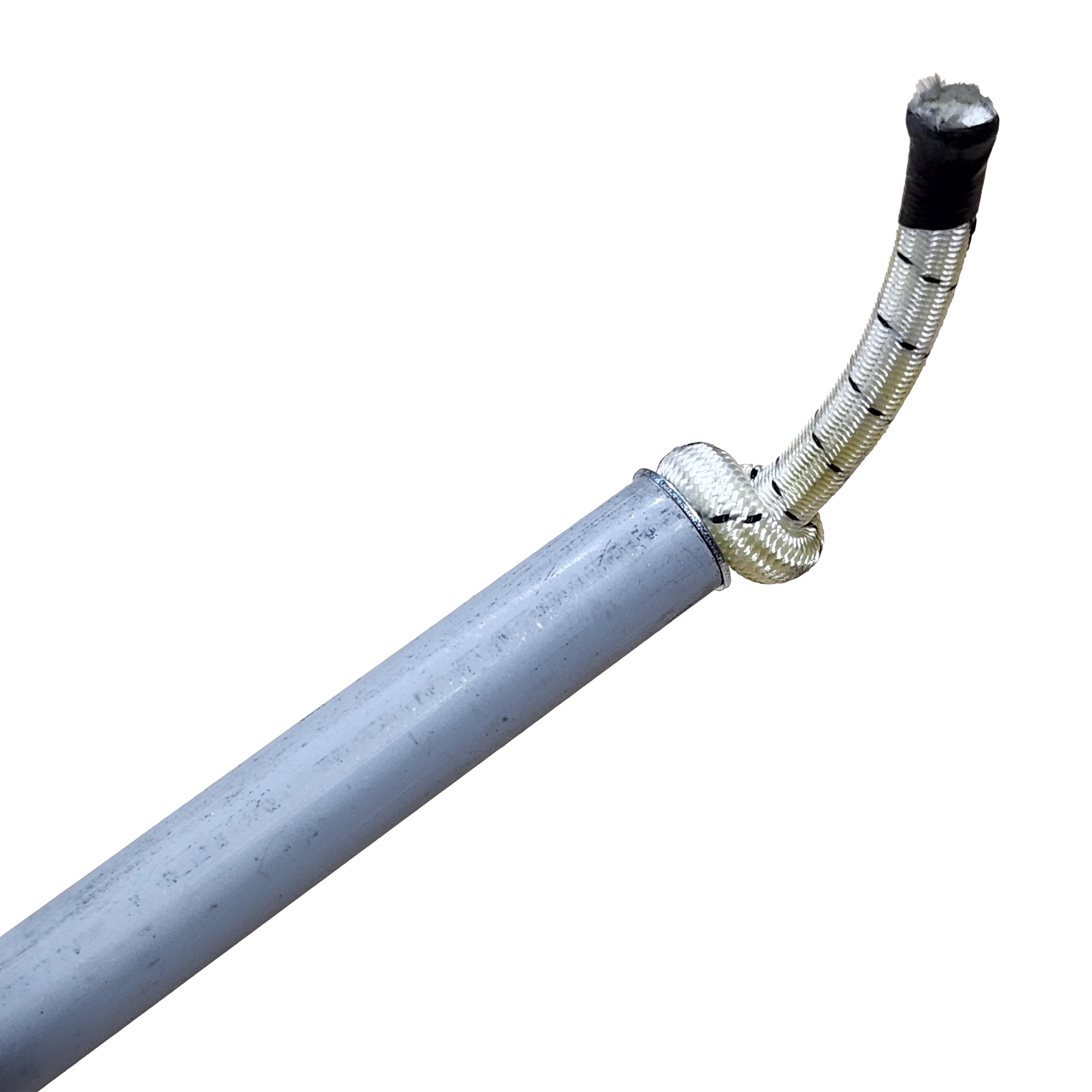

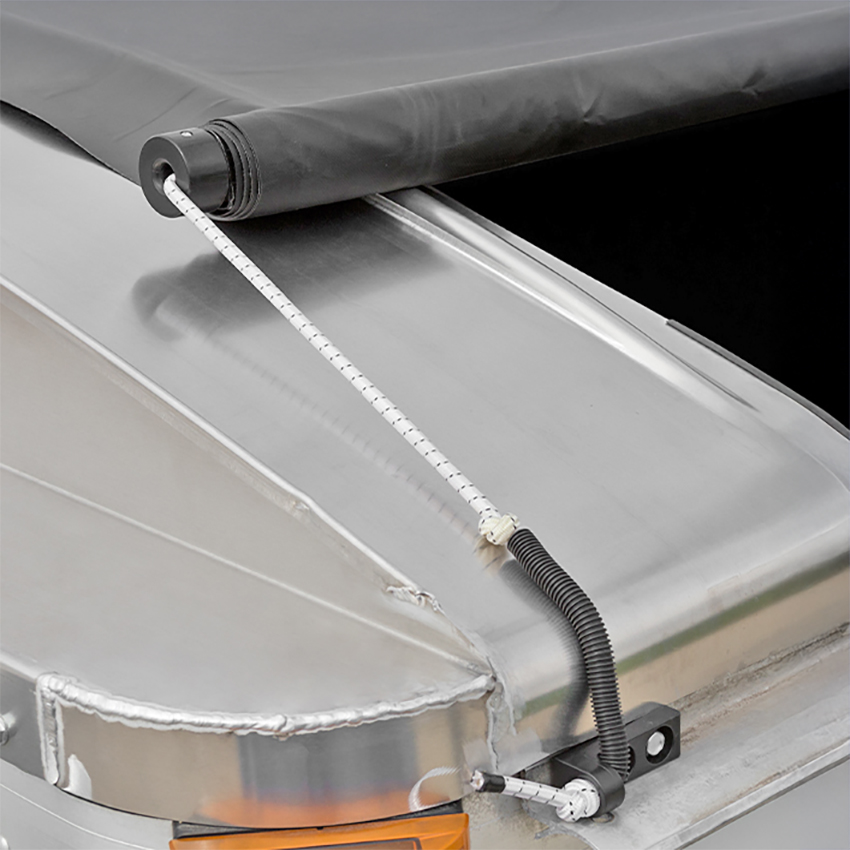

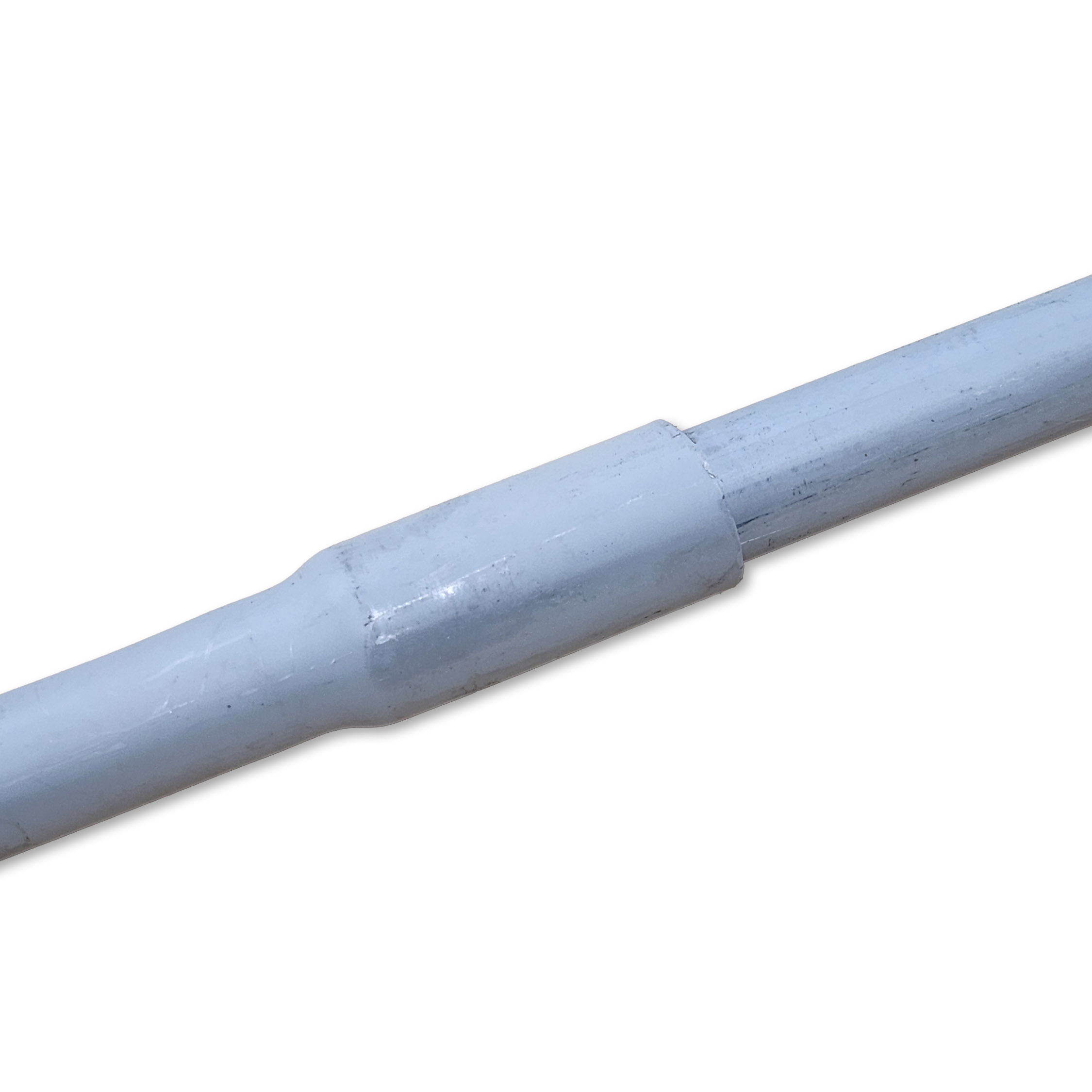

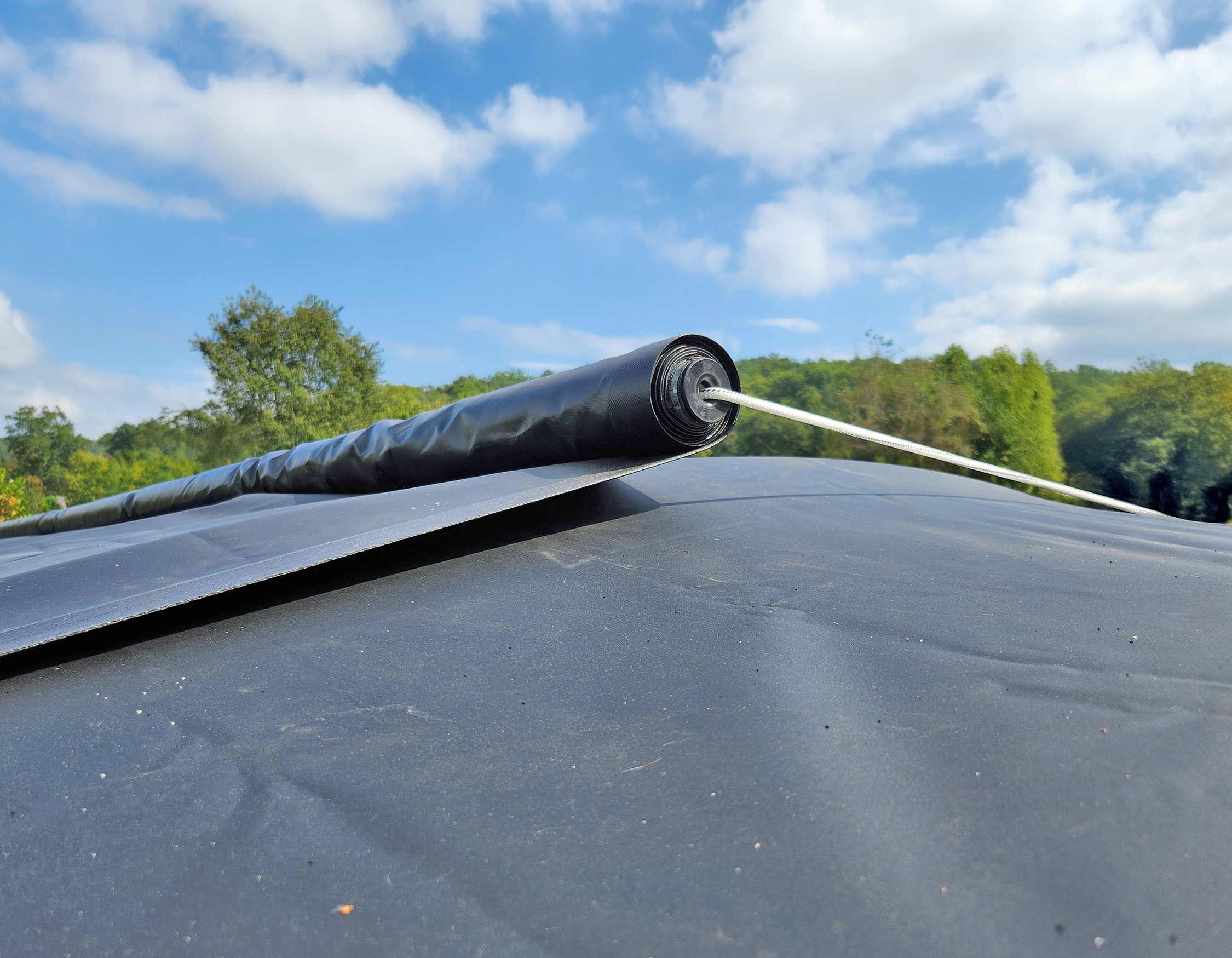

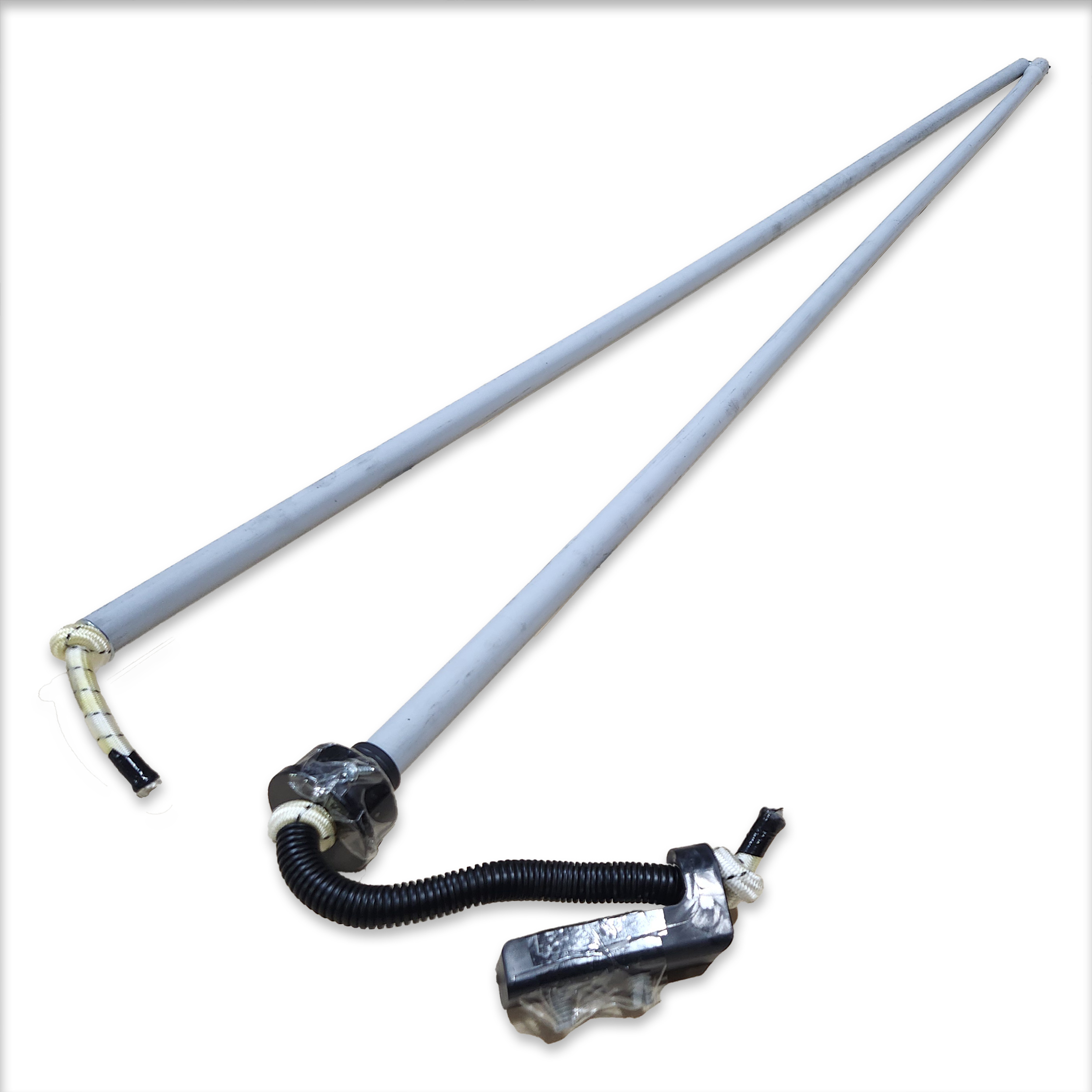

A tarp return kit assists with rolling your side roll trailer tarp to the closed position with a positive return tension. A bungee cord extended through a PVC pipe maintains tension, with knots on either end of the PVC pipe setting the desired tension. The end of the remaining exposed bungee cable is fastened to the side of your trailer, helping to keep the tarp aligned as it rolls and unrolls. When you roll up the tarp to open the trailer, the bungee tension is increased so that when you go to unroll the tarp and close the trailer, the tension is help pull the tube to the closed position. With out some kind of assist, it is likely the tarp will deploy unevenly.Note: Bungee and PVC pipe do NOT need to extend the entire length of the roll tube.

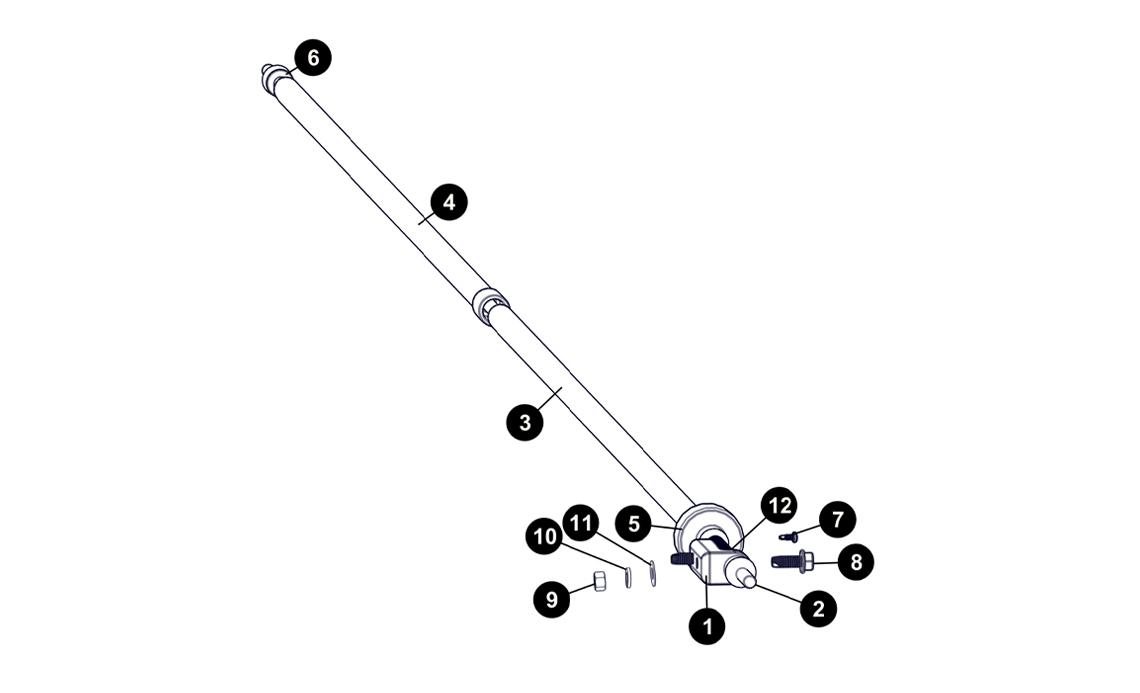

Bungee Return Installation Instructions

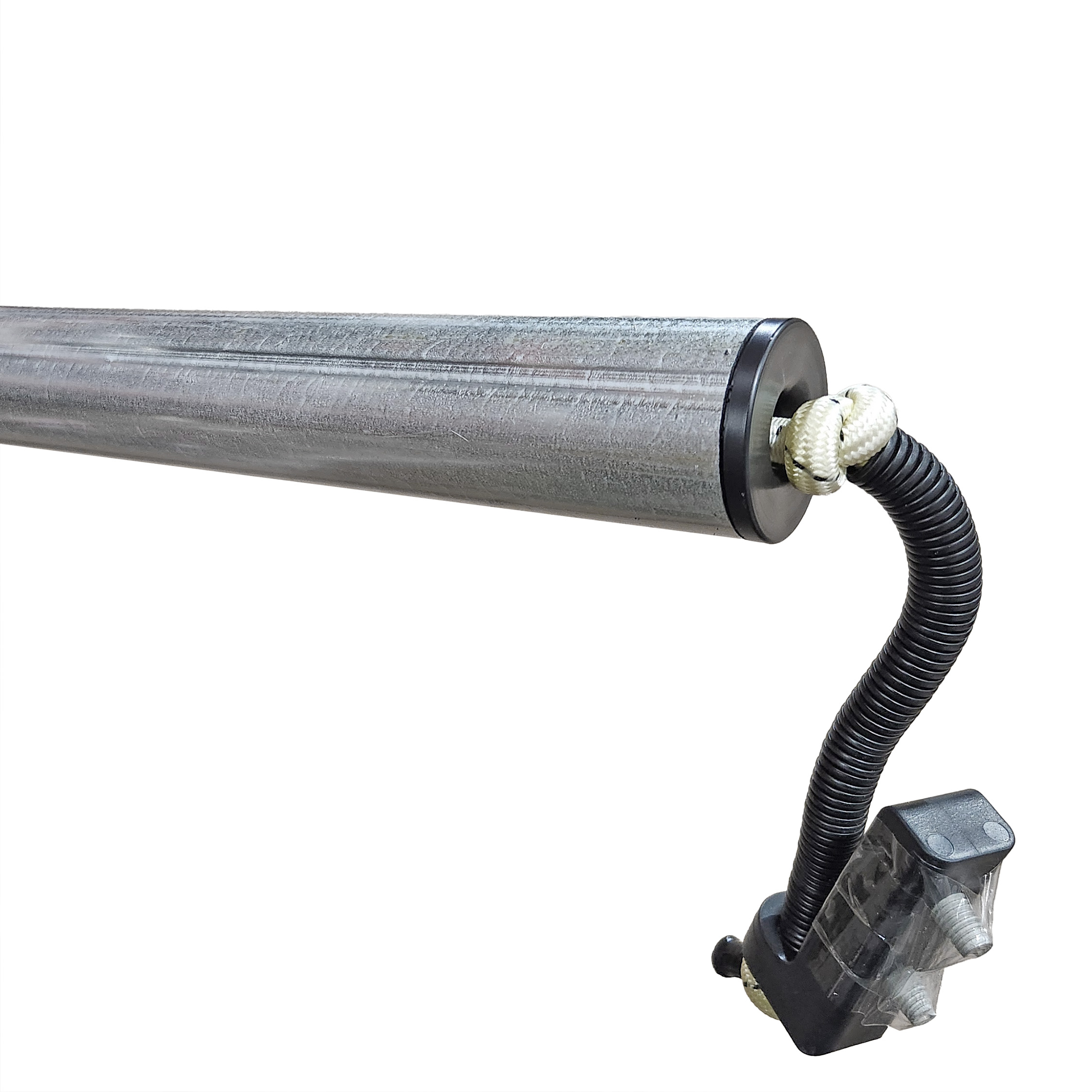

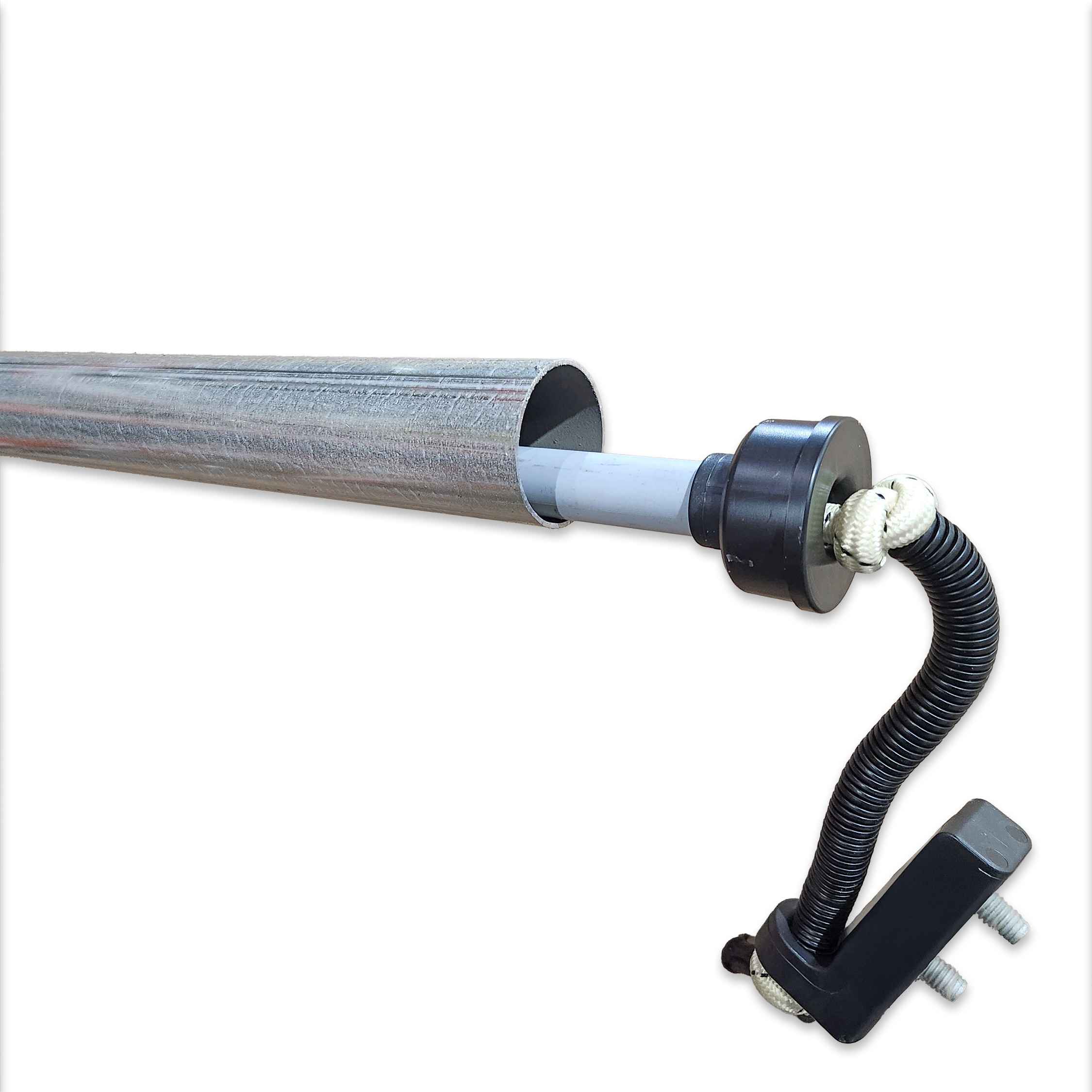

  • 1. Insert return assembly into roll tube, securing the 2" end plug into the opening of the roll tube.
  • 2. Use the included self-drilling screw to drill through the roll tube and secure the end plug into place.

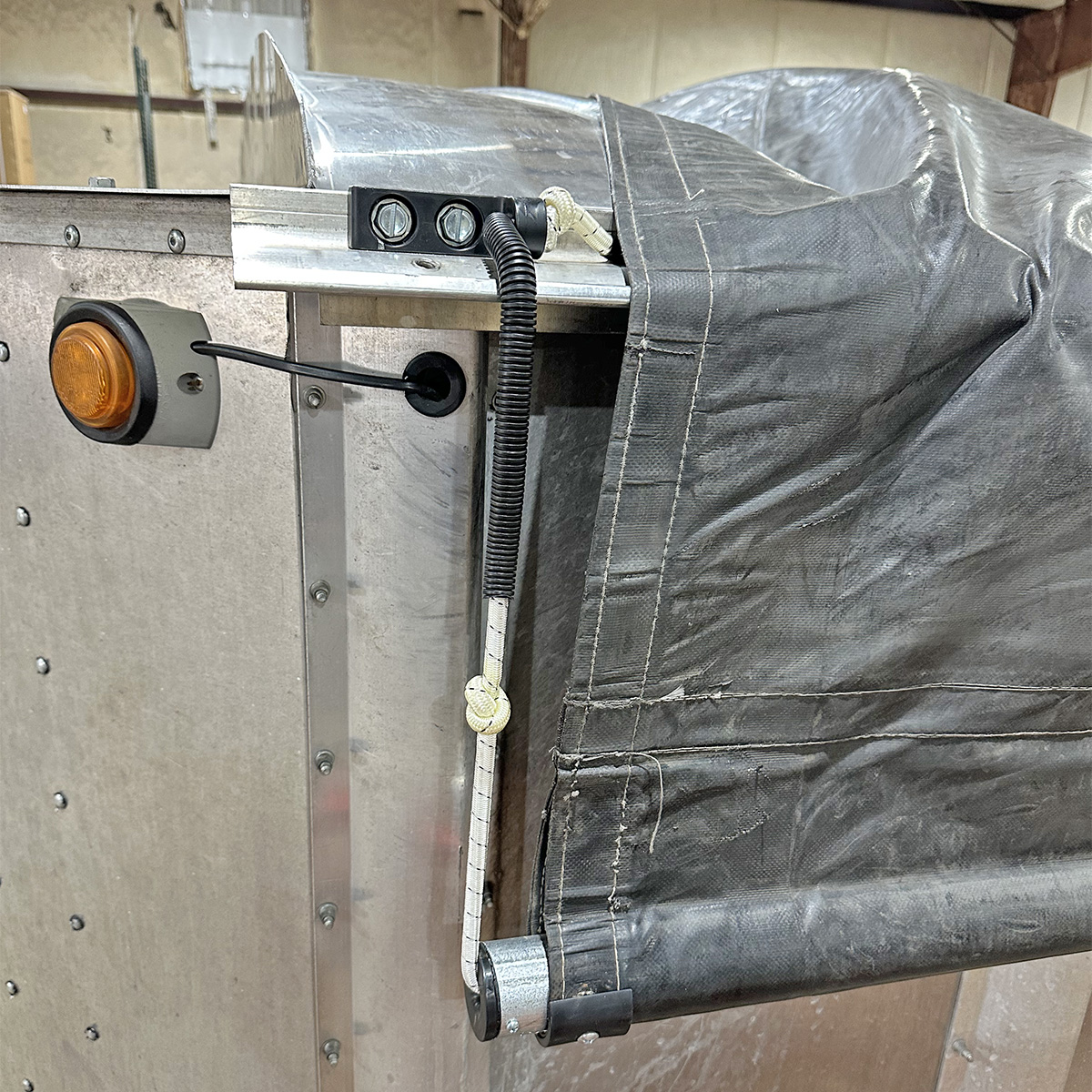

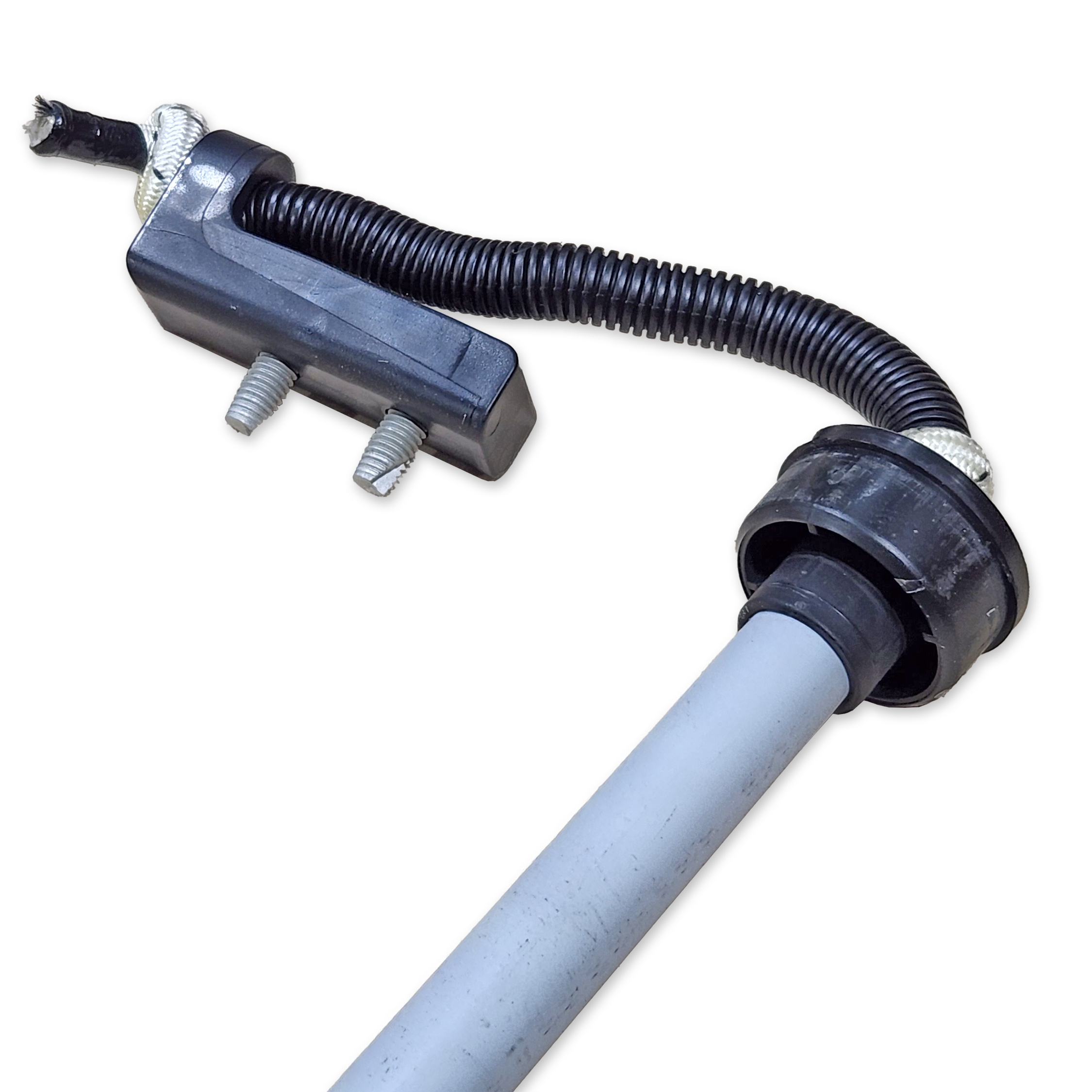

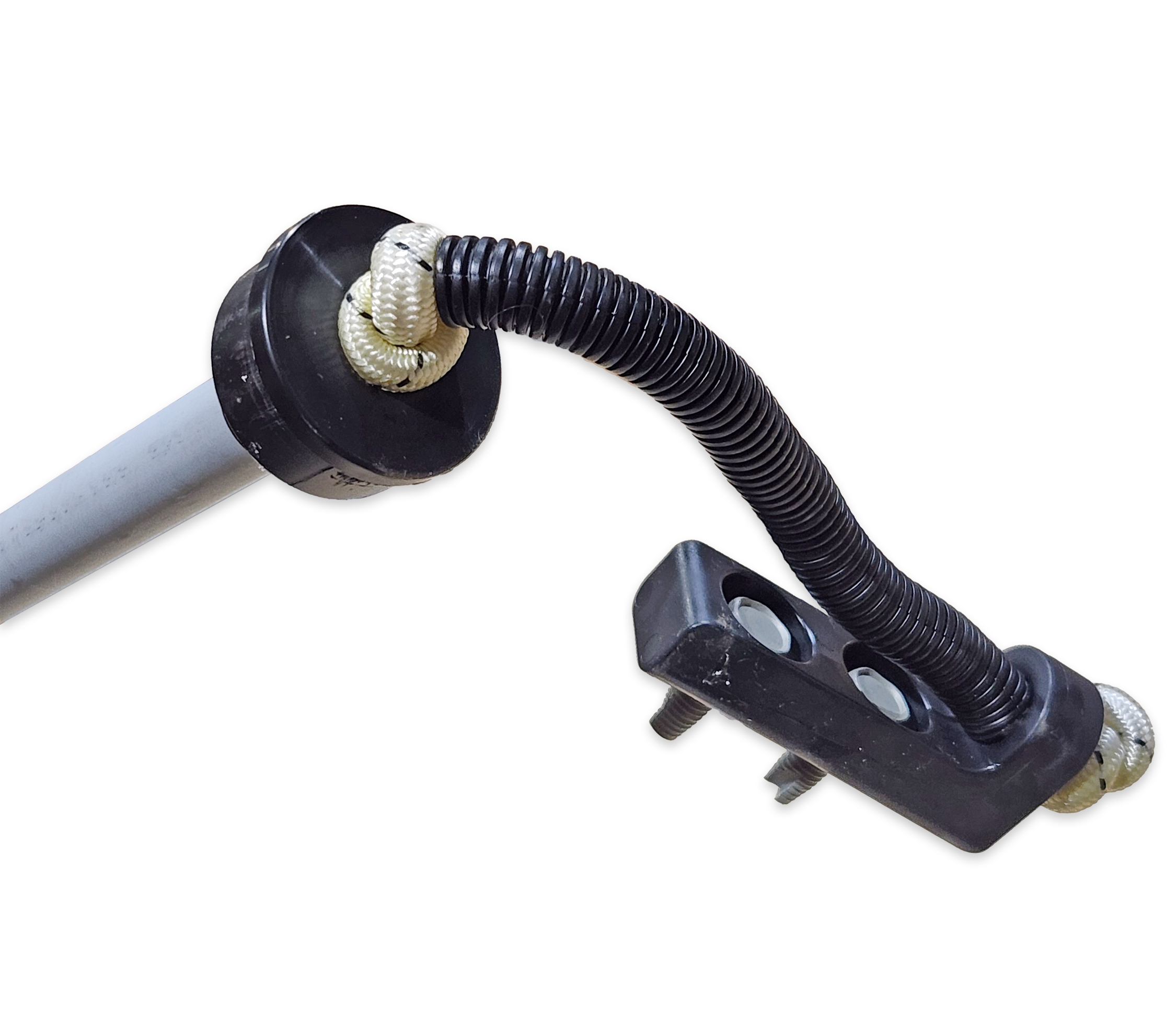

  • 3. Place guide 1/2" back from edge of latch plate, mark the bolt locations, and drill through the marked spots.
  • 4. Fasten the guide with included fastener hardware.
  • 5. Open and close the tarp several times, and make adjustments in the knot location if needed.
    ">
  • Please feel free to Contact Us with any Questions. Thank You!
