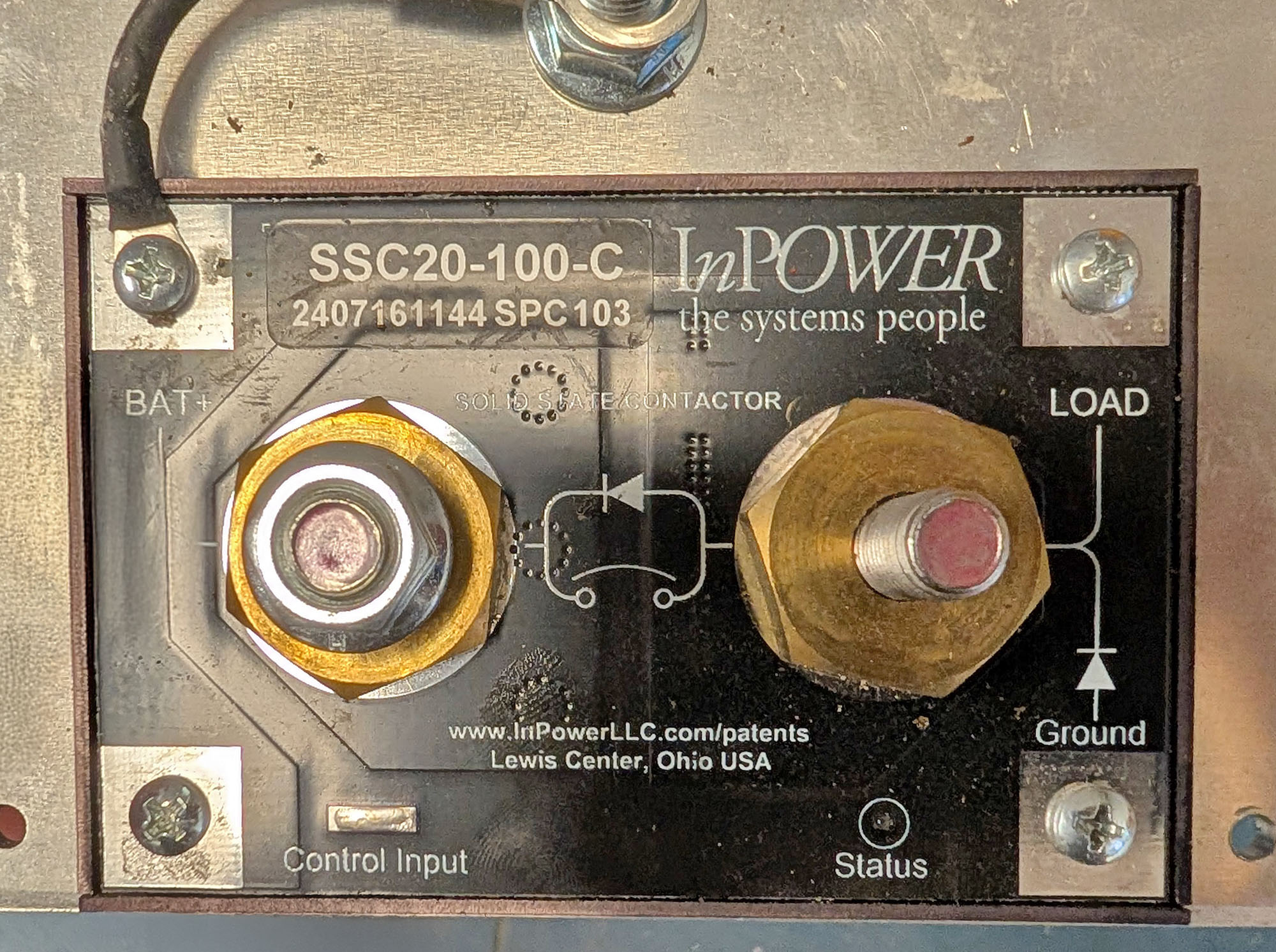

101474 Roll-Rite Smart Breaker | SSC21-100-C (Replaces SSC20-100-C)

The 101474 Solid State connector is part of the 101479 Smart Breaker Kit. The SSC20-100 contactor has been discontinued and replaced by SSC21-100. The 100A Smart Circuit Breaker allows for automatic shut off when the tarp is in the correct position.

• Operating Voltage Range: +7.5 to +20.0 volts
• Case Maximum Temperature: +185º F (85º C)
• Low Battery Voltage Trip: +7.25 to +7.50 Vdc for 250 milliseconds on BAT+
• Loss of Ground Trip: 250 milliseconds
• Over-Current Trip: 100% to 110% of rated amperage for 500 milliseconds
• Logic Power Current Draw:
• With Status LED Off: 80 milliwatts
• With Status LED On: 150 milliwatts
• Turn-On Delay: 25 milliseconds
• Turn-Off Delay: 25 milliseconds
• Control Connector Type: 8-32 stud, brass nuts
• Control Input Voltage: >+8.0 Vdc to activate, <+4.0 Vdc to deactivate
• Control Input Resistance: 120 K Ohm to ground
• BAT+ to LOAD Terminal Leakage Current: 75 microamps maximum
• Weight: 0.40 lbs (0.181 kg)
• Dimensions: 4.40 (111.76 mm) x 2.90 (73.66 mm) x 1.30 inches (33.02 mm)
