Front Spring Assembly for Aero PowerLock Side Roll Tarp Systems 1001-961318

Name: Front Spring Assembly for Aero PowerLock Side Roll Tarp Systems 1001-961318
Brand: Aero
SKU: 34931
Price: 528.69 USD
Availability: InStock

Item #: 34931
Part #: 1001-961318

Price: $528.69

Front Spring Assembly for Aero PowerLock Side Roll Tarp Systems 1001-961318

Item #: 34931
Part #: 1001-961318

Price:	$528.69
Qty:

Replacement spring housing assembly that drives the Front Swing Arm Assembly on Aero powerlock side roll tarp systems.

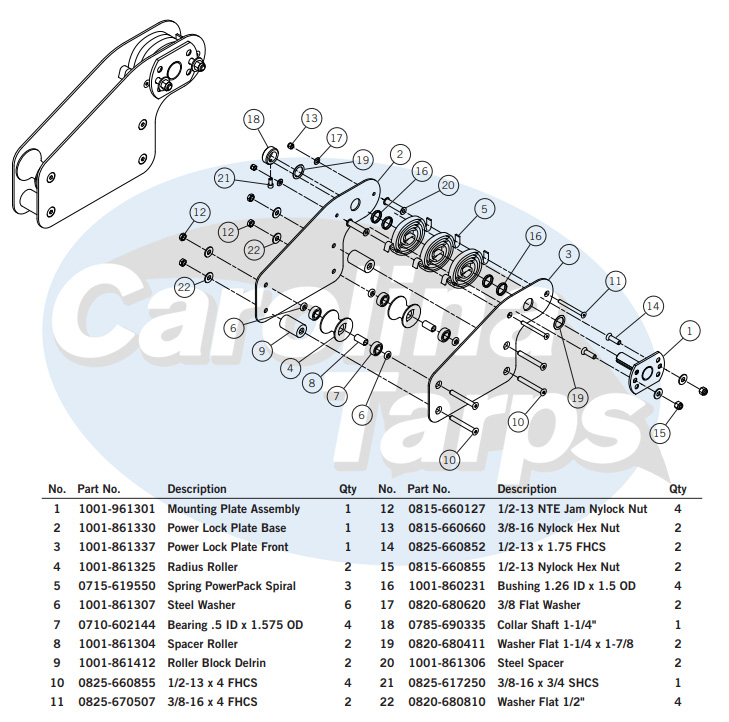

Assembly contains:

1 1001-961301 Mounting Plate Assembly x 1

2 1001-861330 Power Lock Plate Base x 1

3 1001-861337 Power Lock Plate Front x 1

4 1001-861325 Radius Roller x 2

5 0715-619550 Spring PowerPack Spiral x 3

6 1001-861307 Steel Washer x 6

7 0710-602144 Bearing .5 ID x 1.575 OD x 4

8 1001-861304 Spacer Roller x 2

9 1001-861412 Roller Block Delrin x 2

10 0825-660855 1/2-13 x 4 FHCS x 4

11 0825-670507 3/8-16 x 4 FHCS x 2

12 0815-660127 1/2-13 NTE Jam Nylock Nut x 4

13 0815-660660 3/8-16 Nylock Hex Nut x 2

14 0825-660852 1/2-13 x 1.75 FHCS x 2

15 0815-660855 1/2-13 Nylock Hex Nut x 2

16 1001-860231 Bushing 1.26 ID x 1.5 OD x 4

17 0820-680620 3/8 Flat Washer x 2

18 0785-690335 Collar Shaft 1-1/4" x 1v

19 0820-680411 Washer Flat 1-1/4 x 1-7/8 x 2

20 1001-861306 Steel Spacer x 2

21 0825-617250 3/8-16 x 3/4 SHCS x 1

22 0820-680810 Washer Flat 1/2" x 4

Please feel free to Contact Us with any Questions. Thank You!
