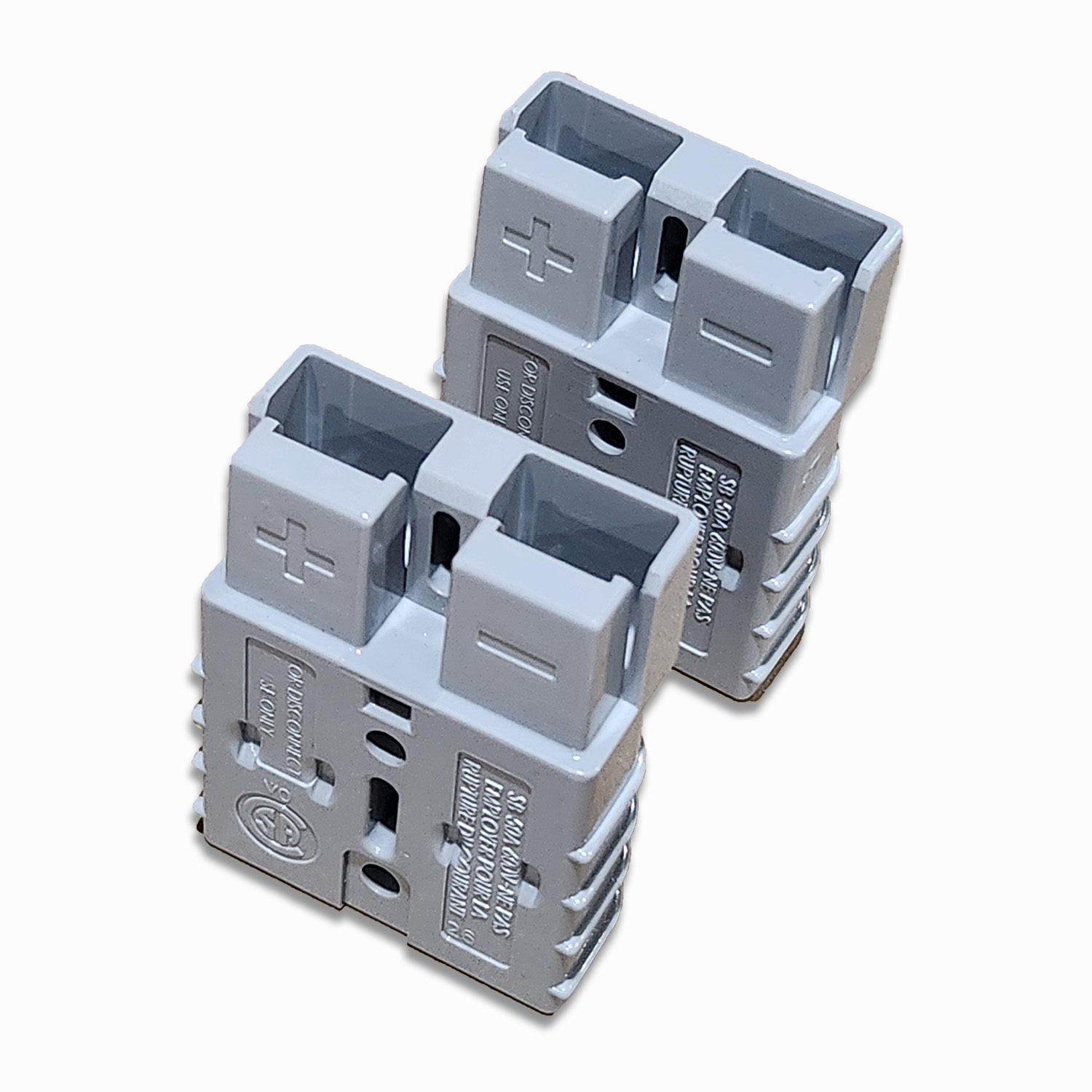

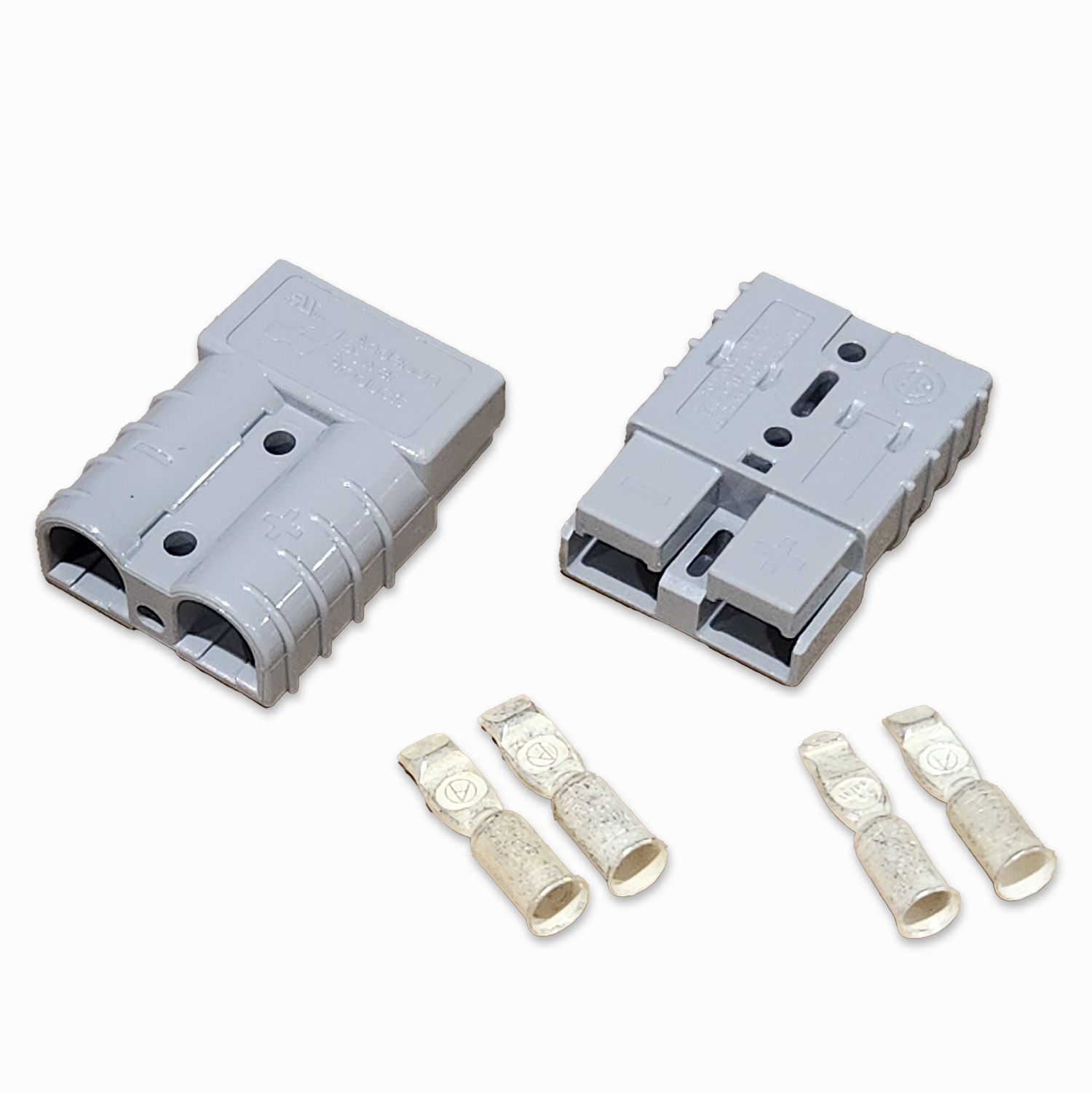

SY-50A 600V Quick-Disconnect Power Connector Kit (Two Connectors with Contacts)

SY-50A 600 V Quick-Disconnect Power Connector for Electric Tarp Systems

The SY-50A 600 V power connector is a compact, heavy-duty quick-disconnect used to deliver reliable 12- or 24-volt DC power to electric tarp motors. It provides a clean, secure connection between the truck’s power source and the tarp system wiring, rated for up to 50 amps continuous current with #6 AWG cable.

Features

• Durable insulated plastic housing protects against impact and weather exposure
• Stainless-steel spring contacts ensure tight, vibration-resistant engagement
• Silver-plated copper terminals offer low resistance and long service life

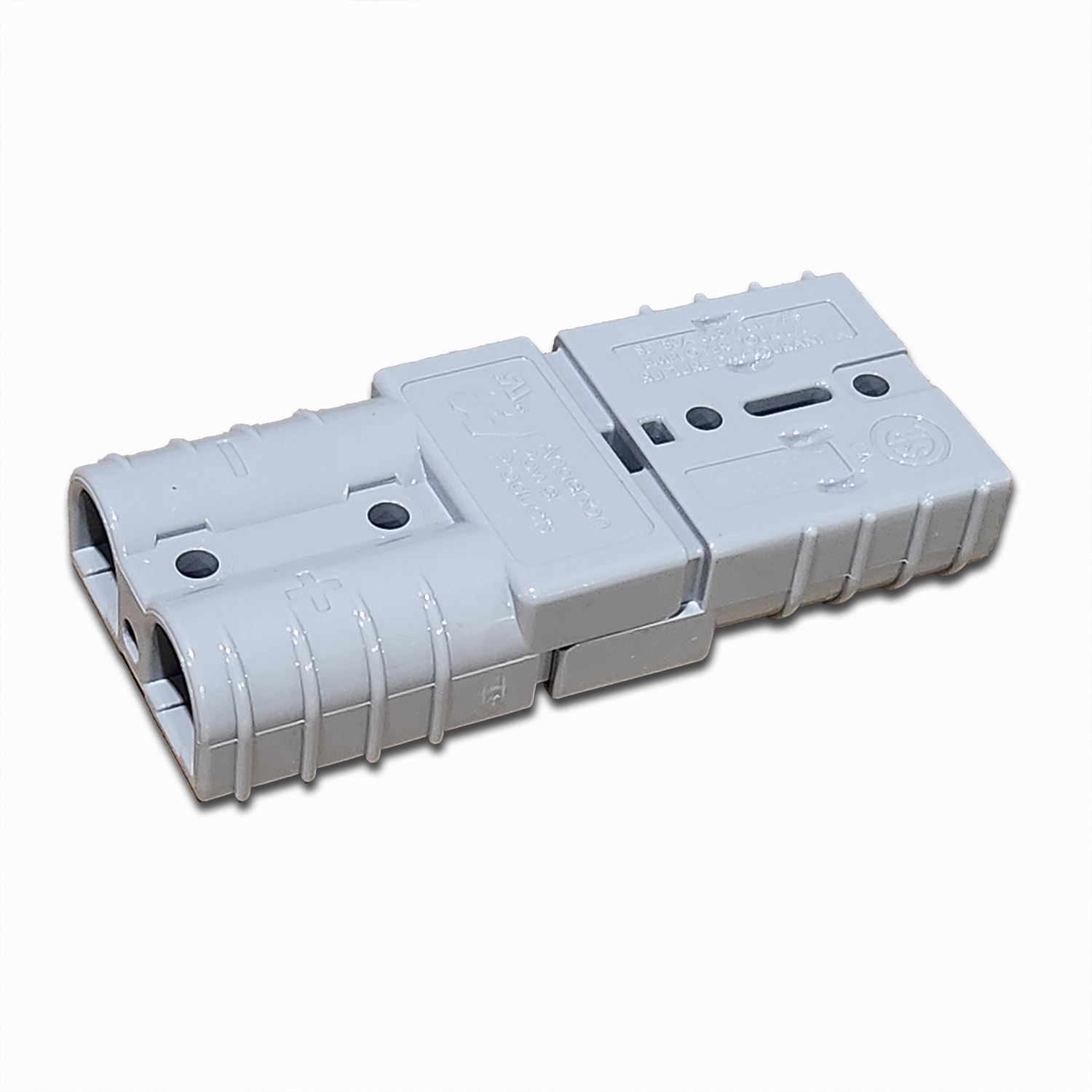

• Genderless design — both halves are identical and can mate in either orientation
• 600 V DC rated, providing a wide safety margin for 12–24 V tarp applications

Installation

1. Strip the cable to 9⁄16 inch (14 mm).
2. Crimp or solder each contact using an approved SY-50 crimp tool or equivalent.
3. Insert contacts into the housing until the spring snaps into place.
4. Plug the truck and trailer connectors together until they lock securely.

Application & Benefits

• Provides a quick-disconnect power interface for tarp system motors
• Simplifies maintenance and trailer changes — no tools or rewiring required
• Rated above normal operating load for cool, efficient performance
• Commonly used for dump trucks, flatbeds, and roll-off trailers

Please feel free to Contact Us with any Questions. Thank You!
