Electric Tarp System for Dump Trucks - ALUMINUM 5 Spring, for Beds 24' to 28'

This 5-spring, front to back, direct drive electric dump truck tarp system is made from polished aluminum. 40% lighter than steel and completely rustproof, this dump truck tarp system comes with everything you need to contain loads in dump bodies from 24' to 28' in length.

• External mount springs with easy bolt-on application
• High strength polished aluminum arms
• Everything you need to get started immediately — 5-spring external mount springs, 84" lower arms, bow set (upper arms and cross bar), tarp spool, and heavy duty motor
• The most economical system on the market
• 50 ft. of 6-gauge dual conductor battery cable
• 3-year full 100% warranty on motor
• Mounting hardware and wire connectors

PLEASE NOTE: TARP NOT INCLUDED IN THESE TRUCK TARP KITS; PLEASE ORDER SEPARATELY. IF YOU WANT A WIND DEFLECTOR OR HOUSING, THOSE MUST ALSO BE ORDERED SEPARATELY.

This kit contains all the components of the external mount tarp system. Click here to buy individual tarp system parts.

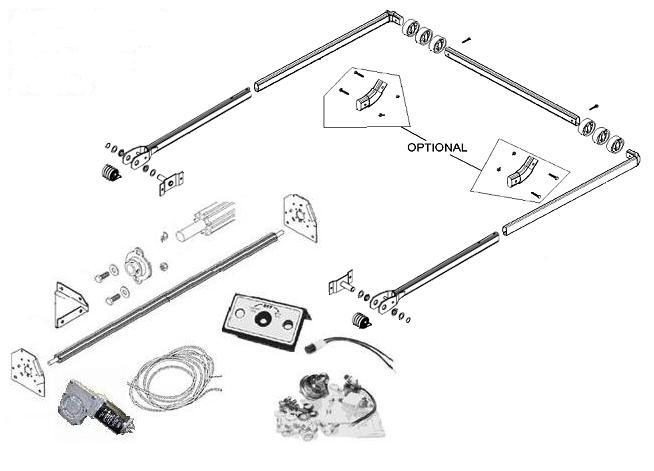

Kit includes:

• (2) 5-Spring Lower Aluminum Arm, 84"
• (2) 5-Spring Pivot Pin, 4.325"
• (10) Spiral torsion springs
• (4) Stainless steel bushings for pivot pin
• (1) 103" aluminum tarp axle (tarp spool)
• (2) Aluminum mounting brackets
• (1) Tarp Motor 60:1
• (1) Axle bearing with flanges
• (2) External Retaining Ring
• (1) Stud shaft
• (1) Rotary switch kit
• (2) 95" aluminum side arms
• (2) Aluminum 90 degree corners
• (1) 103" aluminum cross tube
• (2) Plastic tarp centering flanges
• 75 ft. of 6-gauge dual conductor battery cable
• 3-year full 100% warranty on motor
• All the necessary bolts, etc.
• Mounting hardware and wire connectors

How to install Rotary Switch Kit:

Please feel free to Contact Us with any Questions. Thank You!
