Complete Aluminum Tarp Spool and Electronics Assembly 103"

Complete Aluminum Tarp Spool and Electronics Assembly 103"
In Stock. Expected to ship today.
Item #: 9342
Part #: SKMPASM
Price:
Add To Cart
Complete Aluminum Tarp Spool and Electronics Assembly 103"
Additional Photos
Complete Aluminum Tarp Spool and Electronics Assembly 103"
Complete Aluminum Tarp Spool and Electronics Assembly 103"
Item #: 9342
Part #: SKMPASM
Price:
Qty:
Add To Cart
In Stock. Expected to ship today.

This kit replaces the 'front end' of the tarp system. The Tarp and Wind Deflector are NOT included.

Aluminum Tarp Spool Assembly includes:

  • (1) 103" Aluminum tarp axle (tarp spool)
  • (2) Aluminum tarp spool mounting brackets
  • (2) Rubber bumpers for mounting brackets
  • (1) Stud shaft
  • (1) Axle bearing with flanges
  • (1) 50:1 motor w/chrome cover
  • (1) Rotary switch kit
  • 55 ft. of 8-gauge dual conductor battery cable
  • All installation components

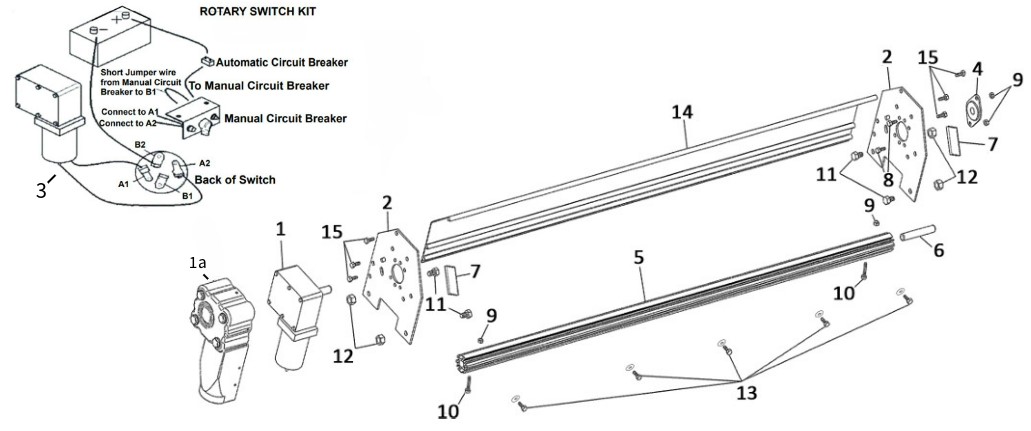

    • Parts Diagram Breakdown

  • 1 - Tarp Motor | Fastest 50:1 600W 12V Gear Motor with 3/4" Shaft
    • 1a Chrome Motor Cover for Slim Motor
  • 2 - Aluminum Tarp Spool Mounting Bracket
  • 3 - Tarp Switch Kit for Electric Tarp System | Rotary Style
  • 4 - Axle Bearing with Flanges 3/4"
  • 5 - Aluminum Tarp Axle (Tarp Spool) - 103"
  • 6 - Stud Shaft 5" x 3/4" Galvanized Steel Tarp Axle Shaft
  • 7- Rubber Bumper for Mounting Bracket
  • 8 - 5/16" x 3/4" Hex Bolt
  • 9 - 5/16" Nylon Nut
  • 10 - 5/16" x 2-1/2" Bolt
  • 11 - 3/8" x 1-1/2" Bolt
  • 12 - 3/8" Nylock Nut
  • 13 - 5/16” x 3/4” Bolts and Washers (5 piece set)
  • 14 - Tarp Wind Deflector with Mounting Hardware 103" (Not Included in Assembly)

    • Please feel free to Contact Us with any Questions. Thank You!
