95" Aluminum Upper Arm with 90 degree corner - Replacement Tarp Arm Item #: 9309 Part #: ASAWC Upper corner arm for truck tarp systems is made of lightweight, heavy-duty aluminum. Measures 2 1/8" wide and 95" long. 90-degree corner adds 5" length. This full-length side arm is typically what you need for dump truck systems on beds from 18 to 38 feet.
4-Spring Lower Aluminum Arm, 78" Item #: 93031 Part #: ALA78 One (1) lower arm for 4-spring tarping system is made of lightweight, ultra-strong aluminum. Arm measures 78" long and 2 3/4" wide, expanding to 3 1/2" at pivot end. Brace measures 1/4" thick and is welded to either side of the arm, with two 1 5/16" holes to accommodate pivot pin and springs.
5-Spring Lower Aluminum Arm, 84" Item #: 9304 Part #: ALA84 Lower arm for 5-spring tarping system is made of lightweight, ultra-strong aluminum. Arm measures 84" long and 2 3/4" wide, expanding to 3 1/2" at pivot end. Brace measures 1/4" thick and is welded to either side of the arm, with two 1 5/16" holes to accommodate pivot pin and springs.

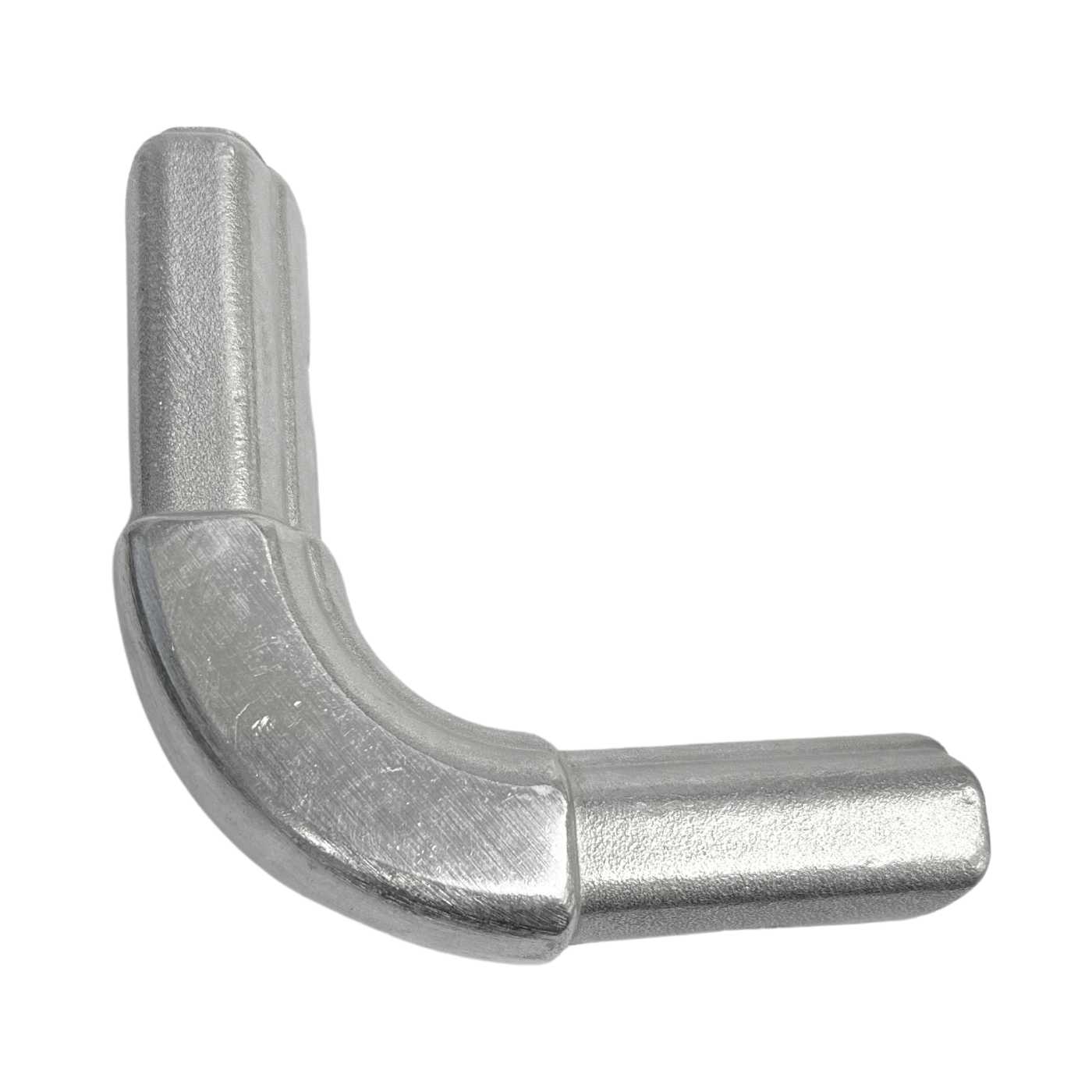

90 Degree Corner for Aluminum Tarp Systems Item #: 9313 Aluminum 90 degree corner is a replacement part for our 4-spring and 5-spring front-to-back systems. Joins the upper arm to the cross tube. 7 5/8" end to end, 2" in diameter, 1" thick.
4-Spring Pivot Pin 3.7" for External Mount Tarp System Item #: 9306 Part #: PP4SP The pivot pin mounts to the side of the dump body. The pin is 3-1/2" long and 1-3/16" thick, with a notch along the pin to fixedly seat the spiral torsion springs. The mounting plate is 8" x 3-5/8". The pin is welded to the mounting plate. The mounting plate has two 5/8" holes, spaced 5-1/2" apart.
5-Spring Pivot Pin, 4.325" for External Mount Tarp System Item #: 9307 Part #: PP5SP Heavy-duty steel pivot pin is 3/16" thick and measures 8" x 3.5" at its widest point. Pivot holes at either end measure 5/8". The pin itself is 4 1/2" long with a diameter of 1 1/8", and has a deep groove where the spring fits. Pin is welded to the plate for maximum strength.
Tarp Arm Spring for Side-Mount Dump Truck Tarp Systems Item #: 9301 Tarp springs are the power behind a spring loaded tarp system. Springs are activated when the tarp is rolled up. Our dump truck tarp springs are electronically coated, which protects them from premature rust, but eventually springs will wear out and lose their tension.
Tarp Arm Springs for Side-Mount Tarp Systems (Pack of 4) Item #: 35278 Tarp springs are the power behind a spring loaded tarp system. Springs are activated when the tarp is rolled up. Our dump truck tarp springs are electronically coated, which protects them from premature rust, but eventually springs will wear out and lose their tension.
Tarp Arm Springs for Side-Mount Tarp Systems (Pack of 8) Item #: 35344 Tarp springs are the power behind a spring loaded tarp system. Springs are activated when the tarp is rolled up. Our dump truck tarp springs are electronically coated, which protects them from premature rust, but eventually springs will wear out and lose their tension.
Plastic Tarp Centering Flange for Aluminum Systems Item #: 9308 Part #: PTCF Centering flange for aluminum tarping system is made of heavy-duty plastic. Has three 3 7/16" holes on either side and screw hole on one end.
102" Aluminum Tarp Housing Item #: 9323 102" polished aluminum tarp housing fits over tarp spool to provide complete protection for your tarp from wind and weather. Mounts to the front of your trailer. Universal design works on many different systems. Made of sturdy, rust-proof, polished aluminum. Support braces sold separately.
96" Aluminum Tarp Housing Item #: 9333 96" polished aluminum tarp housing fits over tarp spool to provide complete protection for your tarp from wind and weather. Mounts to the front of your trailer. Universal design works on many different systems. Made of sturdy, rust-proof, polished aluminum. Support braces sold separately.

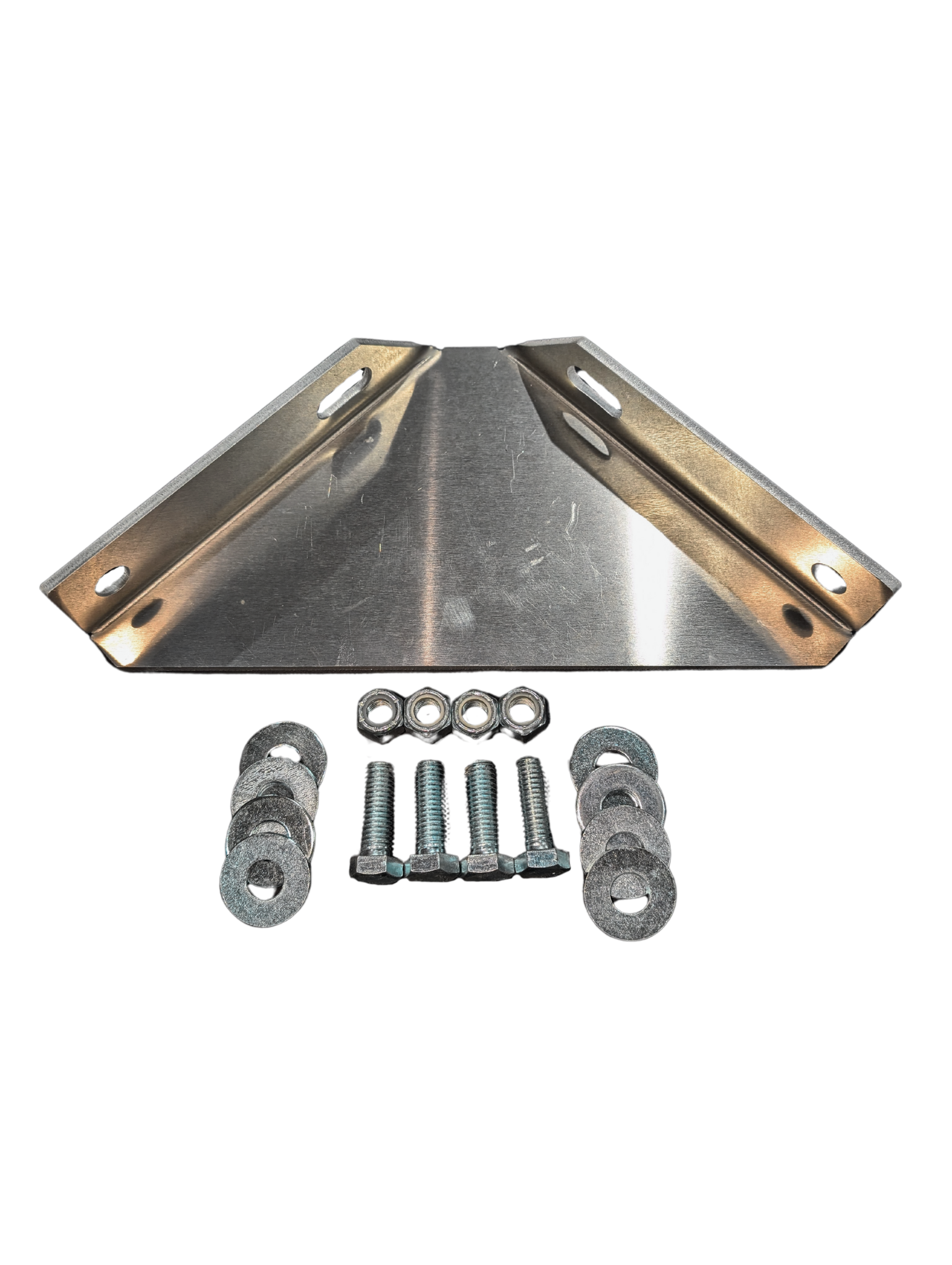

Aluminum Housing Support Brace Item #: 9324 These support braces, also called mounting brackets or mounting braces, bolt to your trailer and to your tarp housing. Universal design lets them work as a replacement part for many different systems. Made of rust-proof, polished aluminum. Comes with all necessary mounting hardware. We recommend using four braces for maximum stability and support.
Tarp System Tension Bar Item #: 9317 Optional tension hoop assembly bar. Tarp passes under tension bar to better secure tarp to truck bed.
4 Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets for widths up to 95" Item #: 9466 This is what you need if you're replacing the framework for the aluminum external mount system of your dump truck. Sometimes called an "arm kit," it has everything you need to replace your system parts from pivot pin to pivot pin. Includes two lower arms, two upper arms, cross tube, two pivot pin sets, eight springs, and all mounting hardware. Does not include roller, motor, switch kit, or wire.
4 Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets for widths 96" to 102" Item #: 94661 This is what you need if you're replacing the framework for the aluminum external mount system of your dump truck. Sometimes called an "arm kit," it has everything you need to replace your system parts from pivot pin to pivot pin. Includes two lower arms, two upper arms, cross tube, two pivot pin sets, eight springs, and all mounting hardware. Does not include roller, motor, switch kit, or wire.
5-Spring Aluminum Arm Kit (Pin to Pin) - Tarp Bow and Pivot Pin Sets Item #: 9477 This is what you need if you're replacing the framework for the aluminum external mount system of your dump truck. Sometimes called an "arm kit," it has everything you need to replace your system parts from pivot pin to pivot pin. Includes two lower arms, two upper arms, cross tube, two pivot pin sets, ten springs, and all mounting hardware. Does not include roller, motor, switch kit, or wire.
5-Spring External Mount Pivot Pin Set, Aluminum Item #: 9312 Part #: 5SPEMPPS Includes one 4.325" pivot pin, one 84" lower aluminum arm, and all the necessary springs, bushings, and bolts.
Aluminum Tarp Bow Set for widths up to 95" Item #: 9318 Part #: ATBS-CUT Tarp bow set includes two 98" side arms, two 90 degree corners, a 95" cross tube, and two plastic tarp centering flanges.
Aluminum Tarp Bow Set for Widths 96" to 102" Item #: 93181 Part #: ATBS Tarp bow set includes two 98" side arms, two 90 degree corners, a 103" cross tube, and two plastic tarp centering flanges.
