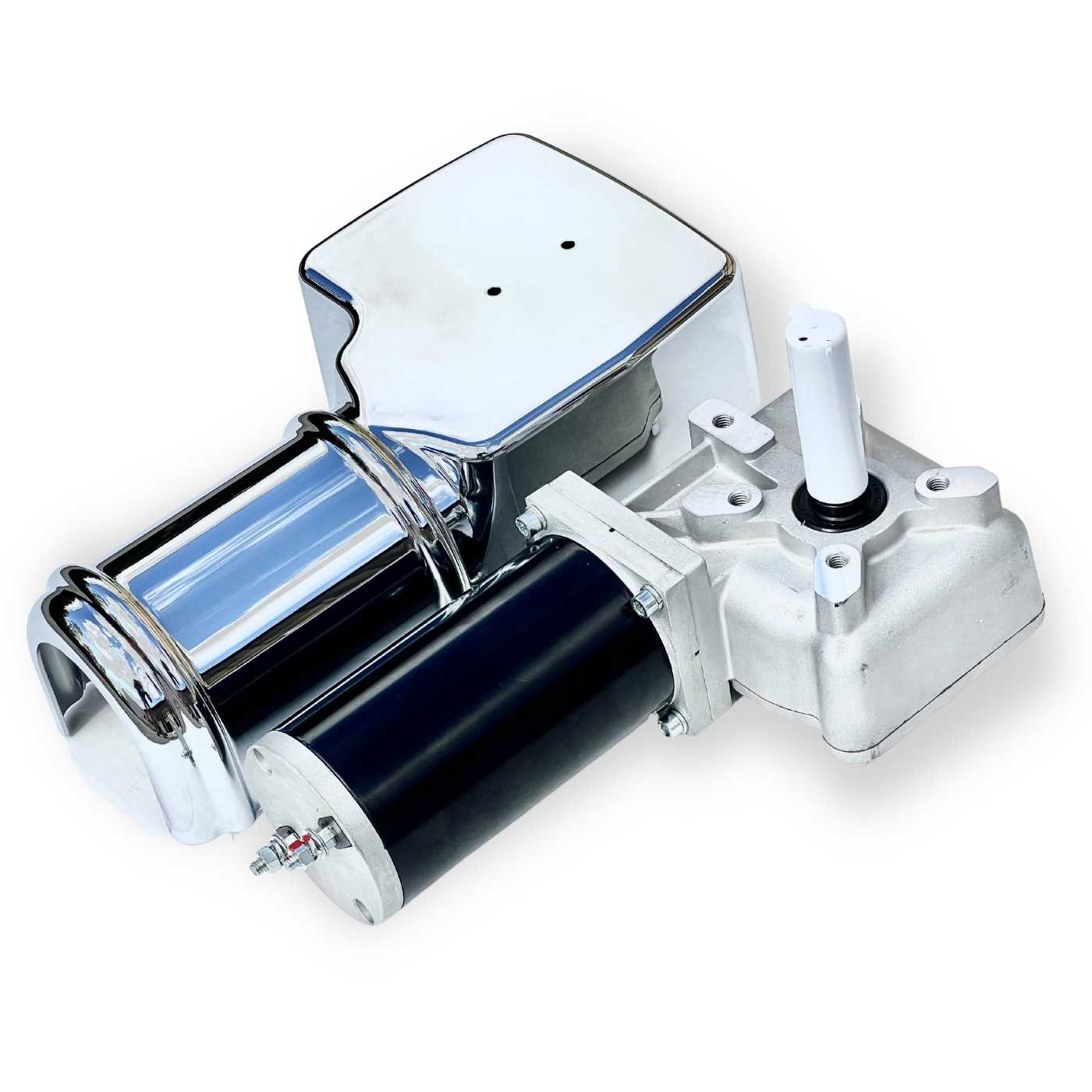

Tarp system gear motor, 60:1 w/ chrome cover. 5-bolt pattern makes it suitable for almost any tarping system, on vehicles up to 28'.
Specifications
- Type: Direct Drive*
- Gear reduction: Worm to Wheel
- Gear ratio: 60:1
- Mounting: Three 5/16 - 18 Grade 5 minimum bolts
- Output Shaft: 3/4" using 5/16" through hole
- Voltage: 12V
- Operating torque: 44 NM
- Current Draw @ rated torque: 40 Amps
- Power: 1.5 hp
- Braking: Inherent
- Compatibility: Replaces Donovan Tarp Motor 61G, Mountain Tarp Motor K0170S, Aero Tarp Motor 0755-623474, US Tarp Motor 13732
Includes chrome housing.
Mounting Tarp Motor for Dump Truck
Three 5/16"-18 x 1/2" deep mounting holes on the output shaft side of the gearbox. All three mounting holes should be used when mounting the direct drive motor unit to the bulkhead (drilling new holes or welding the gearbox or other parts of the unit will void the motor's warranty).
Coupling
The gearbox has a 3/4" diameter output shaft with a 5/16" diameter through hole. To minimize stress on your motor and gearbox, avoid the use of oscillating loads and attach tubes as straight as possible to the output shaft.
Electrical Installation
Complete a thorough check and installation of all wiring while all cables are unattached. Where necessary, securely fasten all wiring to adjacent structure using cable ties.
Recommended gauge of wire: 6 AWG
Instructional video:
*Due to electric motor efficiency and electric power available from your vehicle's battery or alternator, these units are rated for intermittent use. Use motor for short periods of time only, allowing it to cool between uses. If your motor becomes too hot to touch, stop operation and allow it to cool.
