HR1515-1 Roller Assembly for HR1500H Hydraulic

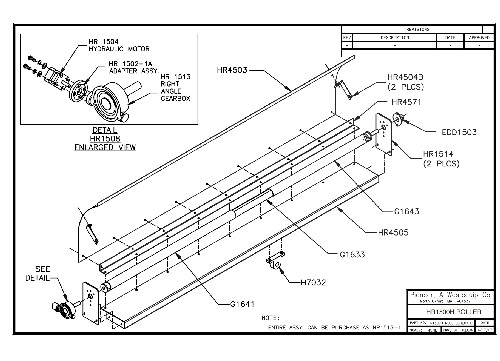

This HR1515-1 Roller Assembly is an intregal part of the Pioneer HR1500H Tuff-Tarper Tarping Series. The roller assembly includes the complete header box including pump, motor, and everything shown in this drawing.

• Bearing (right side roll)
• Aluminum roll center section
• Left Side roll
• Aluminum Roll
• Clevis Eye Pad
• Hydraulic Motor with Gear Box
• Plate
• Windscreen
• Windscreen Support Angle
• Windscreen Mounting Angle

Tuff-Tarper systems are designed for single axle, cable hoist, and hooklift trucks. These systems can cover open-top, fixed height containers ranging from 8' to 16? and are available in semiautomatic, automatic and hydraulic versions.

The HR1500H uses your pre-existing hydraulic system and is powered by a right-angle, hydraulic, direct-drive motor/gearbox combo. As the tarp is deployed, the hydraulic motor unwinds the cover from the roller while the torsion-spring powered pivot arms move to cover the load. These units come standard with a 9' wide, expandable, heavy-duty mesh tarp.
