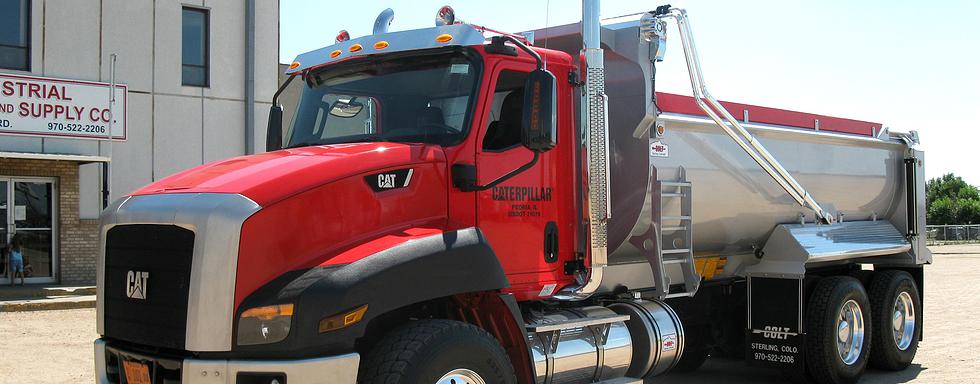

US Tarp 5-Spring External Mount Aluminum Tarp System
US Tarp's 5-spring aluminum system is a great option for a front-to-back tarping solution for trucks up to 26'. This kit includes all hardware for installation. Tarp is sold separately. This system will work with most standard dump truck tarps. Tarp sold separately.
US Tarp's 5-spring aluminum system is a great option for a front-to-back tarping solution for trucks up to 26'. This kit includes everything you need to install.
Specifications:
5 spring assembly
Fits dump bodies up to 26' in length
Versatile bolt or weld on spring assemblies
Premium polished aluminum arms for a great look and no rust
Featuring telescoping arms so one system fits a wide range of body lengths
Stainless steel hardware is available upon request
Aluminum 5-Spring External Mount System, Slim:
Tarp Tips:
Measure your dump body from where you are planning on installing your Tarp Spool to the Tail Gate
Adding a Tarpaulin Housing or Wind Deflector can extend the lifespan of the tarp
Using a Metal Polish on your Tarp System arms can bring back the showroom shine
Reference for External Mount Polished Aluminum System Exploded View*:
Reference Number
Part Number
Description
1
11183
3-Spring Pivot Pin
1
11132
4-Spring Pivot Pin
1
11272
5-Spring Pivot Pin
2
11244
3-Spring Lower Aluminum Arm 31" Length
2
14084
4-Spring Lower Aluminum Arm 48" Length
2
11243
4-Spring Lower Aluminum Arm 60" Length
2
11242
5-Spring Lower Aluminum Arm 84" Length
3
11121
Spiral Torsion Spring
4
11141
Stainless Aluminum Bushing for Pivot Pin
5
11142
Retaining Ring for Pivot Pin
6
11232
Aluminum Cross Tube, 105-1/2" Long
7
11236
Aluminum Upper Side Arm, 98" Long
8
11235
Aluminum 90° Corner
9
11231
Plastic Tarp Centering Flange
10
14942
2-1/2" Rubber Tarp Centering Flange
11
11233
Optional Aluminum 45° Elbow
11
11234
Optional Aluminum 30° Elbow
12
11177
Aluminum Stop Bracket W/ Rubber Bumper
*see "Additional Photos" above for diagram
